Monitor Audio Vecta series

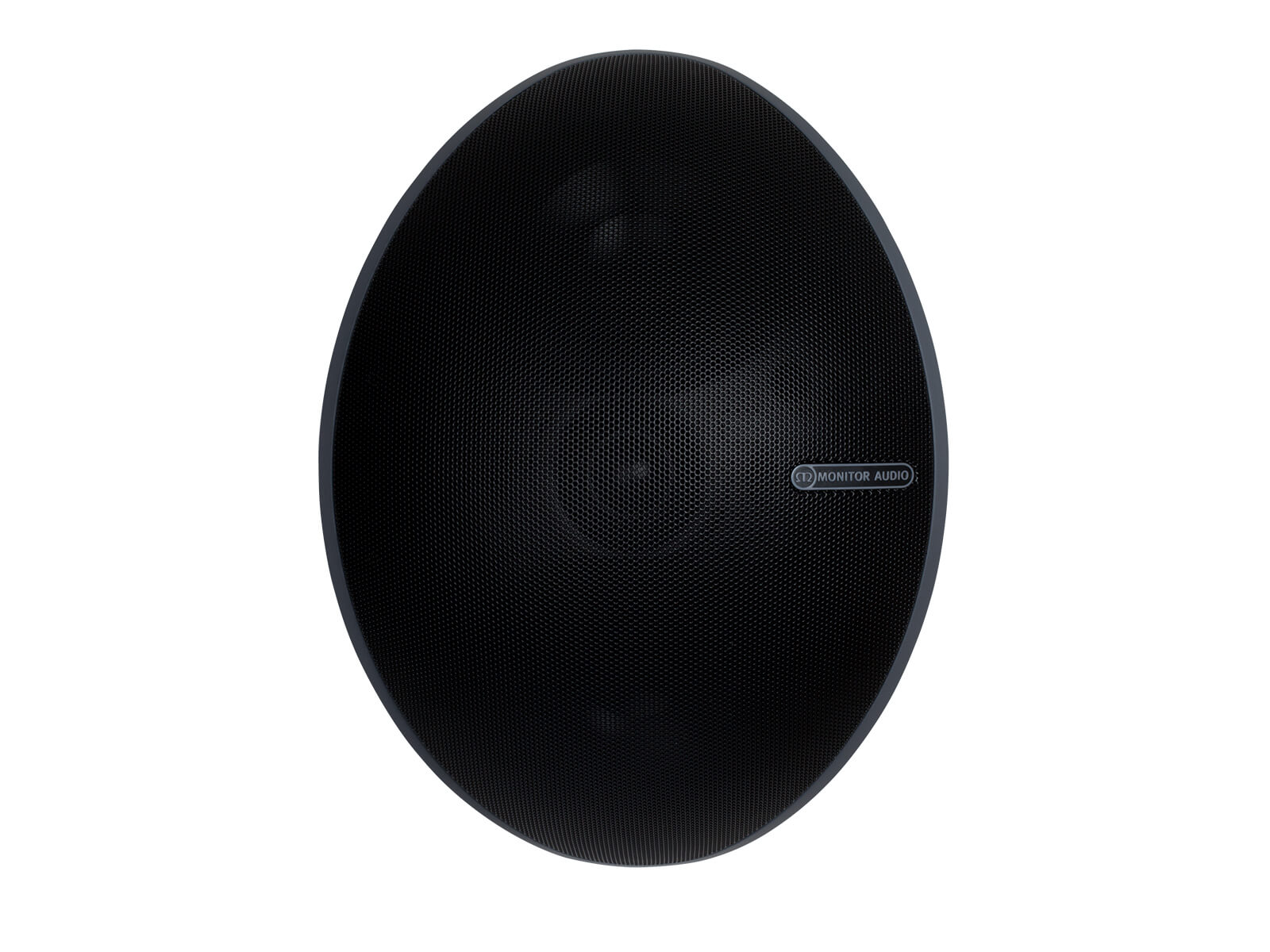

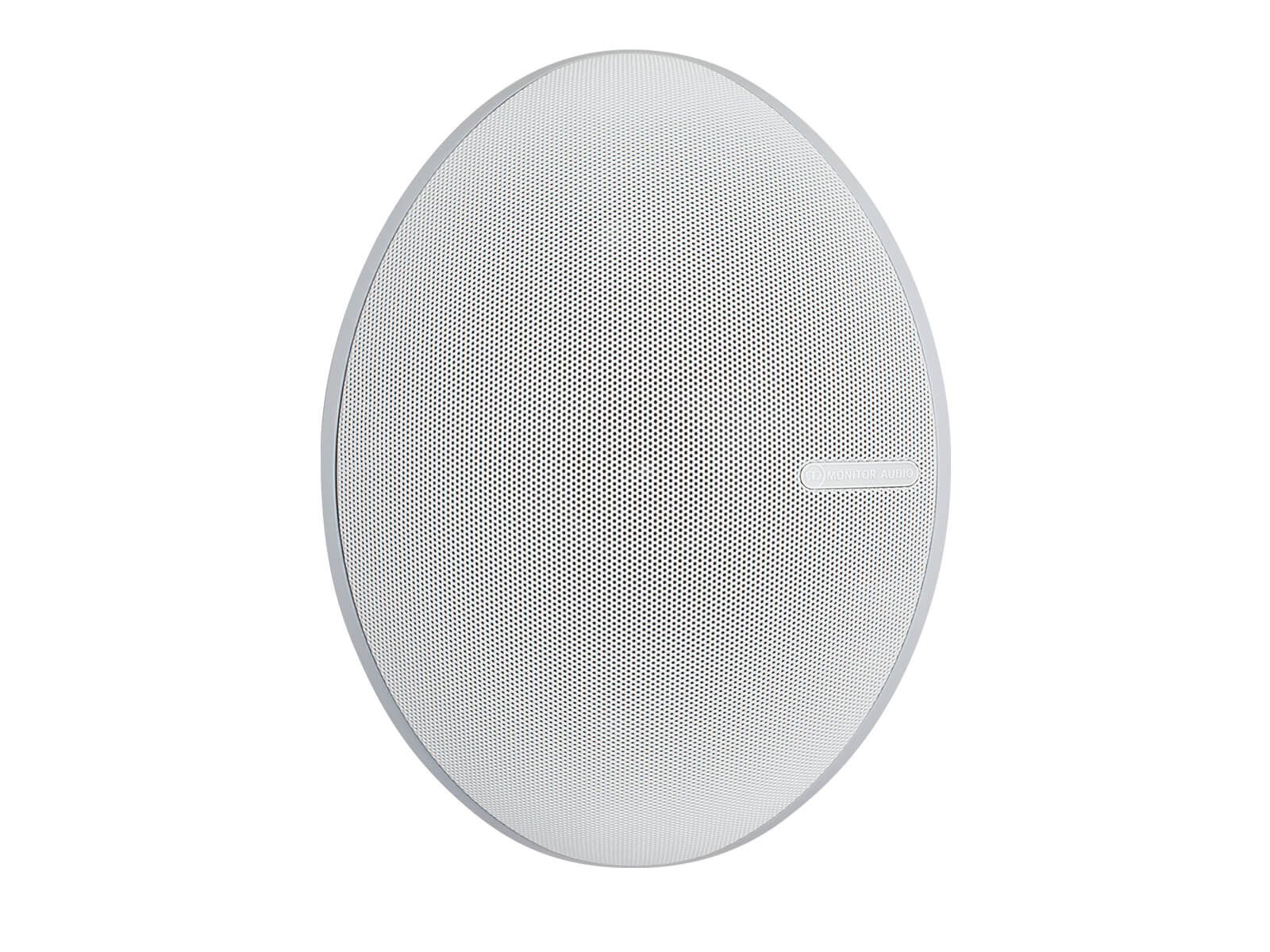

Monitor Audio Vecta V240
Thanks to Monitor Audio’s heritage in high end audio, the Vecta V240 indoor and outdoor speaker has been engineered to the highest possible standard, and will deliver top quality performance for a true audio experience.

Key Features
The stylish, compact and versatile Monitor Audio Vecta V240 speaker cleverly combines architectural aesthetics with innovation and the high quality professional audio performance that the company is renowned for.

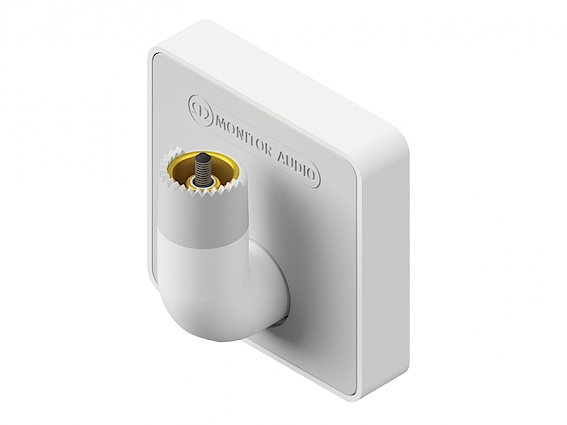

The Vecta V240 offers incredible versatility and simple installation. Using cleverly designed brackets and a single point automatic connection system, Vecta can be quickly and easily mounted horizontally or vertically. Installers fix the bracket to the wall, and then simply drop the speaker in place and secure with a single screw. Not only does this installation method save integrators’ time, but it also simplifies the complexity of installing speakers at height or at difficult angles. An automatic connection system means that the install is extremely sleek, with no wires visible. To ensure clients receive the best audio possible, when mounted to the wall bracket, Vecta can be angled by 25 degrees or tilted a further 32.5 degrees (using the optional wedge) to direct the audio to the desired location.
When installing speakers outside, a different approach is required, as these systems need to be capable of delivering a high quality audio standard in external conditions and locations. For the Vecta V240, Monitor Audio has mounted dual 4″ C-CAM metal cone drives to the curved baffle to ensure a controlled sound field is delivered. This minimises ceiling or wall reflections when mounted under eaves or in a corner, while still being wide enough for superior coverage when wall-mounted. The centrally mounted C-CAM tweeter is horn loaded to ensure dispersion at the crossover point matches the mid-range, providing a smooth off axis frequency response. This approach results in the ultimate audio experience, with fewer audio black spots.

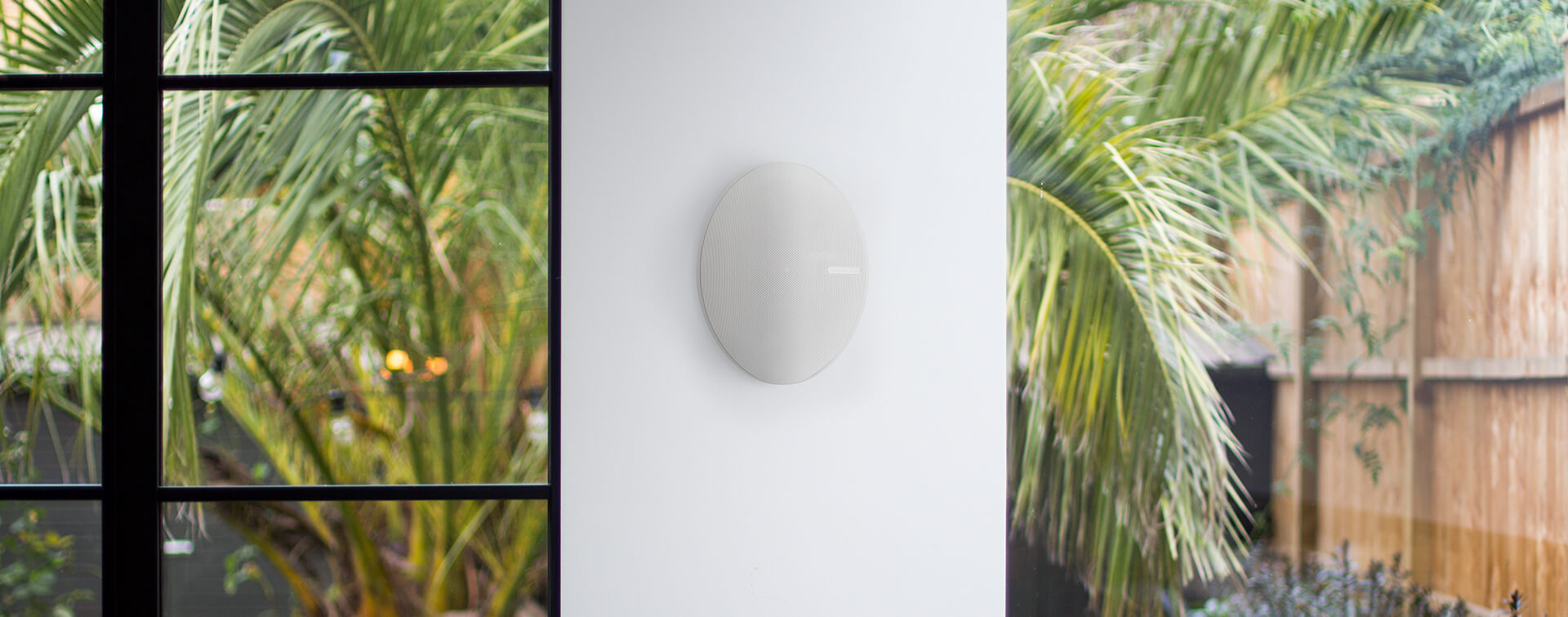

The aesthetics match the performance of this speaker, as Monitor Audio has paid close attention the design. Developed with a curved tapered back cabinet in black or white, the Vecta V240 blends seamlessly under eaves or in vertical corners. The speakers are cased in a high-density ABS enclosure with rust proof grille that is designed to withstand extreme environmental exposure. The completely sealed box cabinet is free from air noise or potential ingress of water and dirt, which helps to maintain the IP55 environmental protection rating.
Please note: Brackets sold separately.




System Format
2-way (3 driver)
Frequency Response (-6 dB)
70 Hz – 25 kHz
Sensitivity (1W@1M)
88 dB
Nominal Impedance
4 ohms
Minimum Impedance
3.8 ohms @ 240 Hz
Maximum SPL
108 dBA (each)
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
25 – 100 W
Bass Alignment
Sealed cabinet
Crossover Frequency
2.5 kHz
Connection
Gold plated push terminals – attached to bracket
Environmental Protection Rating
IP55 -25° to 65° C / -13° to 149° F
Bracket Pivot Angle
Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45.
Drive Unit Complement
2 x 4″ Drivers featuring C-CAM metal cone technology
25 mm (1″) C-CAM dome tweeter
Dimensions (H x W x D)
336 x 243.2 x 150 mm (131/4 x 99/16 57/8″)
Weight
2.55 kg (5 lb 10 oz)
Finishes
Black or White (Signal White, RAL 9003)
Sold As
Single Unit


Monitor Audio Vecta V240-LV

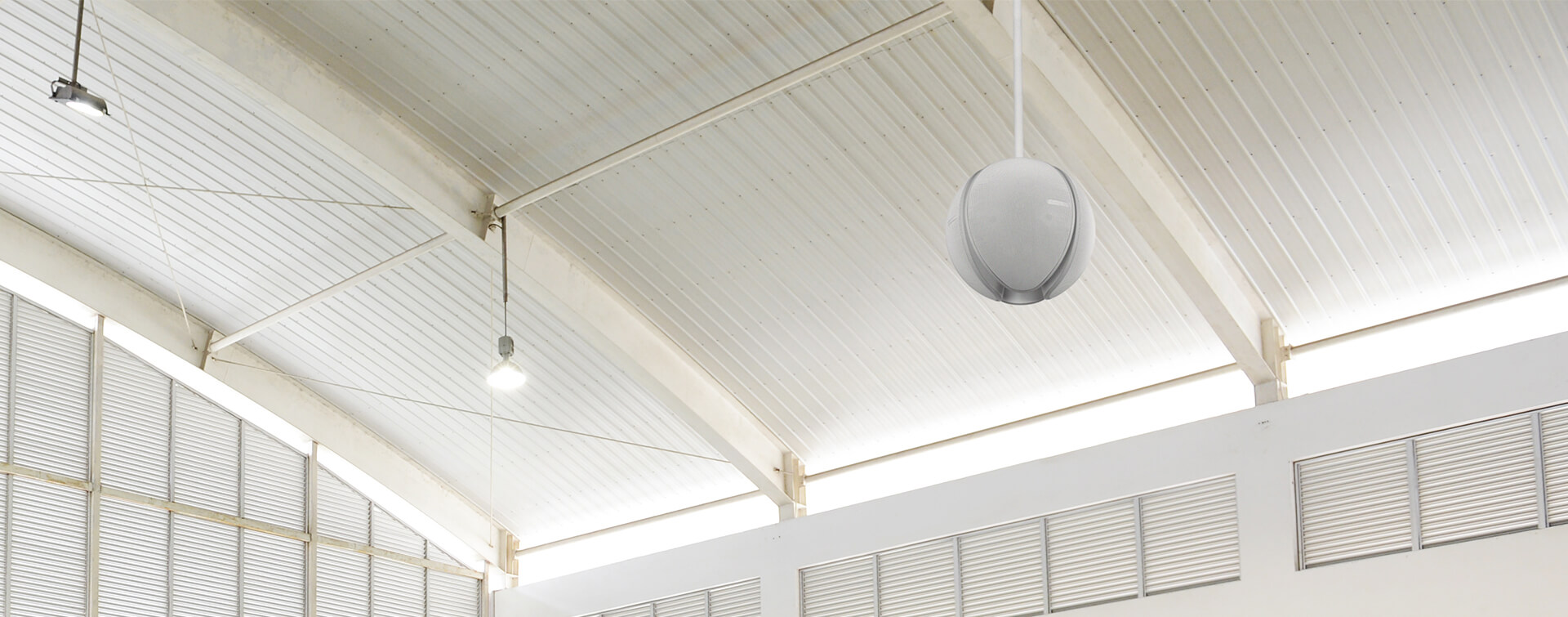

Part of Monitor Audio’s Vecta interior/exterior range of architectural loudspeakers, the V240-LV adds further versatility in commercial applications with a 70/100V line level. Its integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses, when long cable runs are required.

Key Features

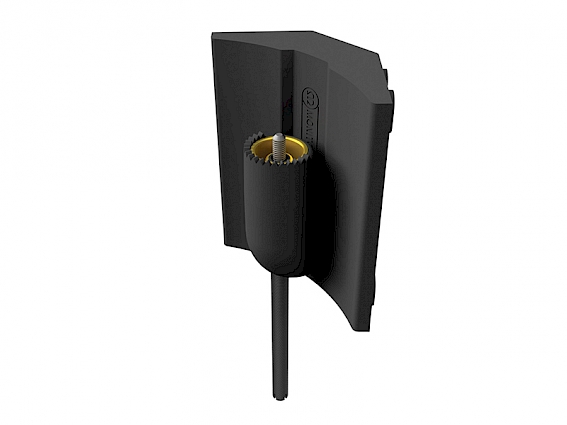

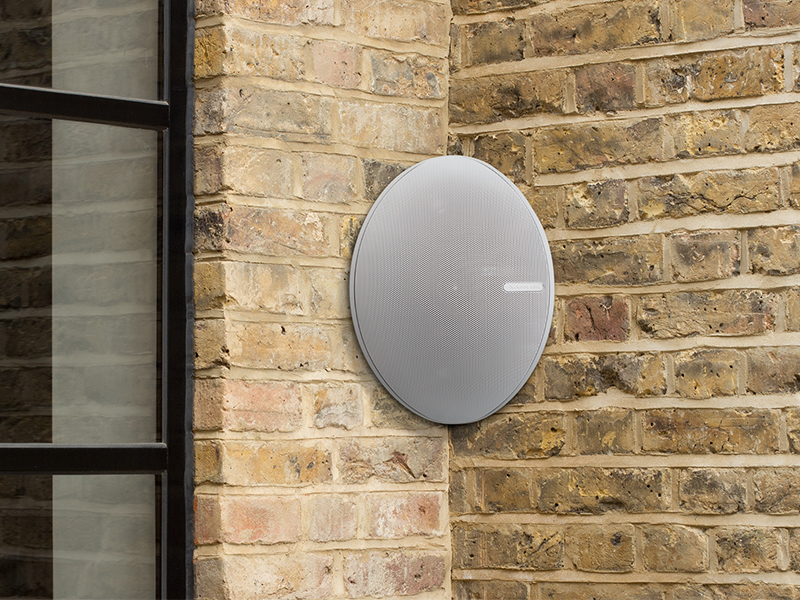

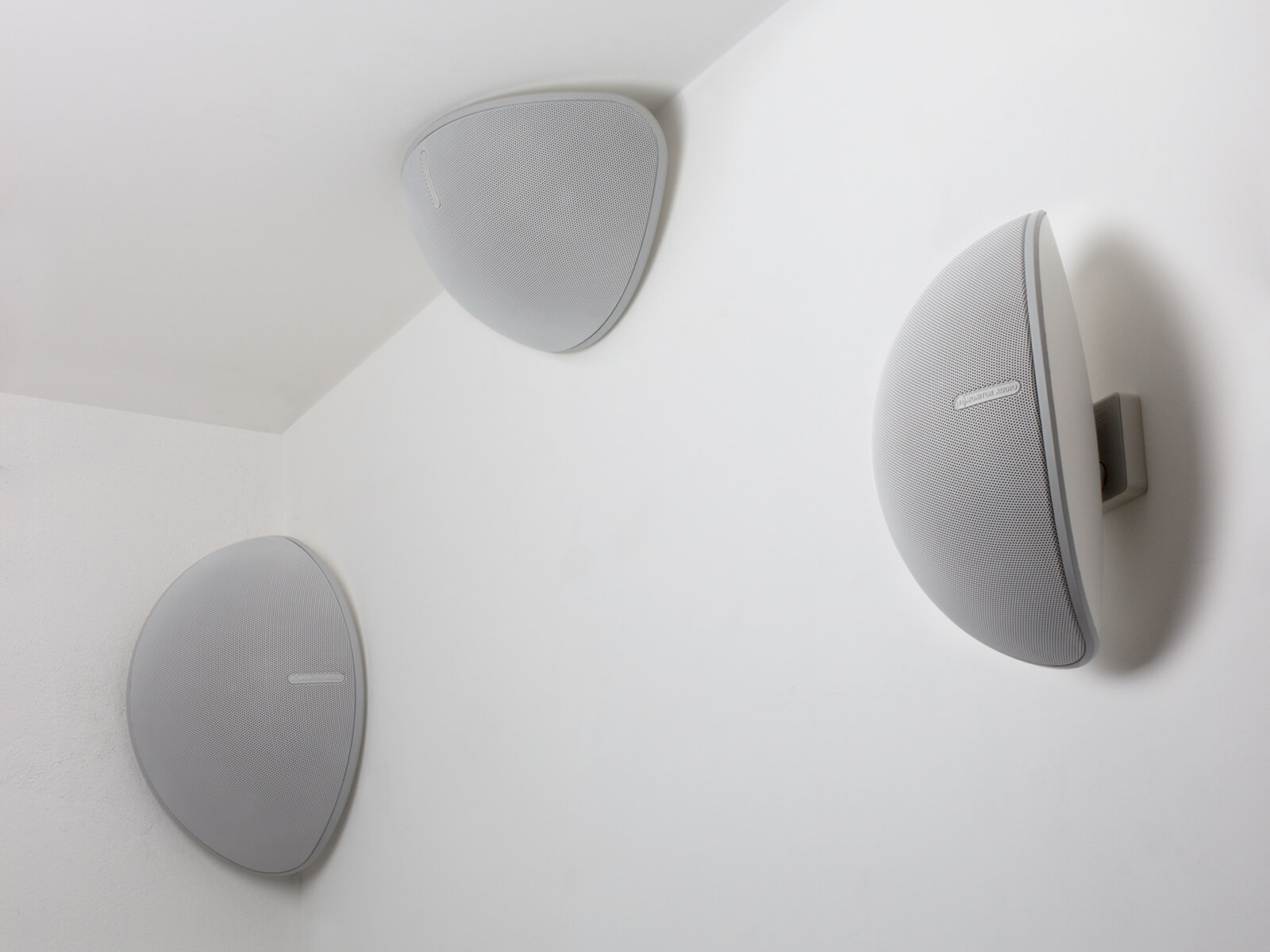

The V240-LV can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.
With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.
Driver and System design
The dual 4″ C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.
Fitting
Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.
Please note: Brackets sold separately.




System Format
2-way (3 driver)
Frequency Response (-6 dB)
70 Hz – 25 kHz
Sensitivity (1W@1M)
88 dB
Nominal Impedance
70/100 Volt line level
Minimum Impedance
N/A
Switch
70 V (2, 4, 8, 16, 32) power level
Maximum SPL
108 dBA (each)
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
25 – 100 W
Bass Alignment
Sealed cabinet
Crossover Frequency
2.5 kHz
Connection
Gold plated push terminals – attached to bracket
Environmental Protection Rating
IP55 -25° to 65° C
Bracket Pivot Angle
Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45.

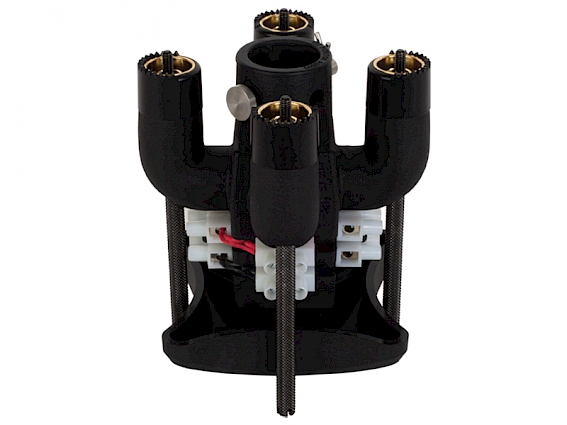

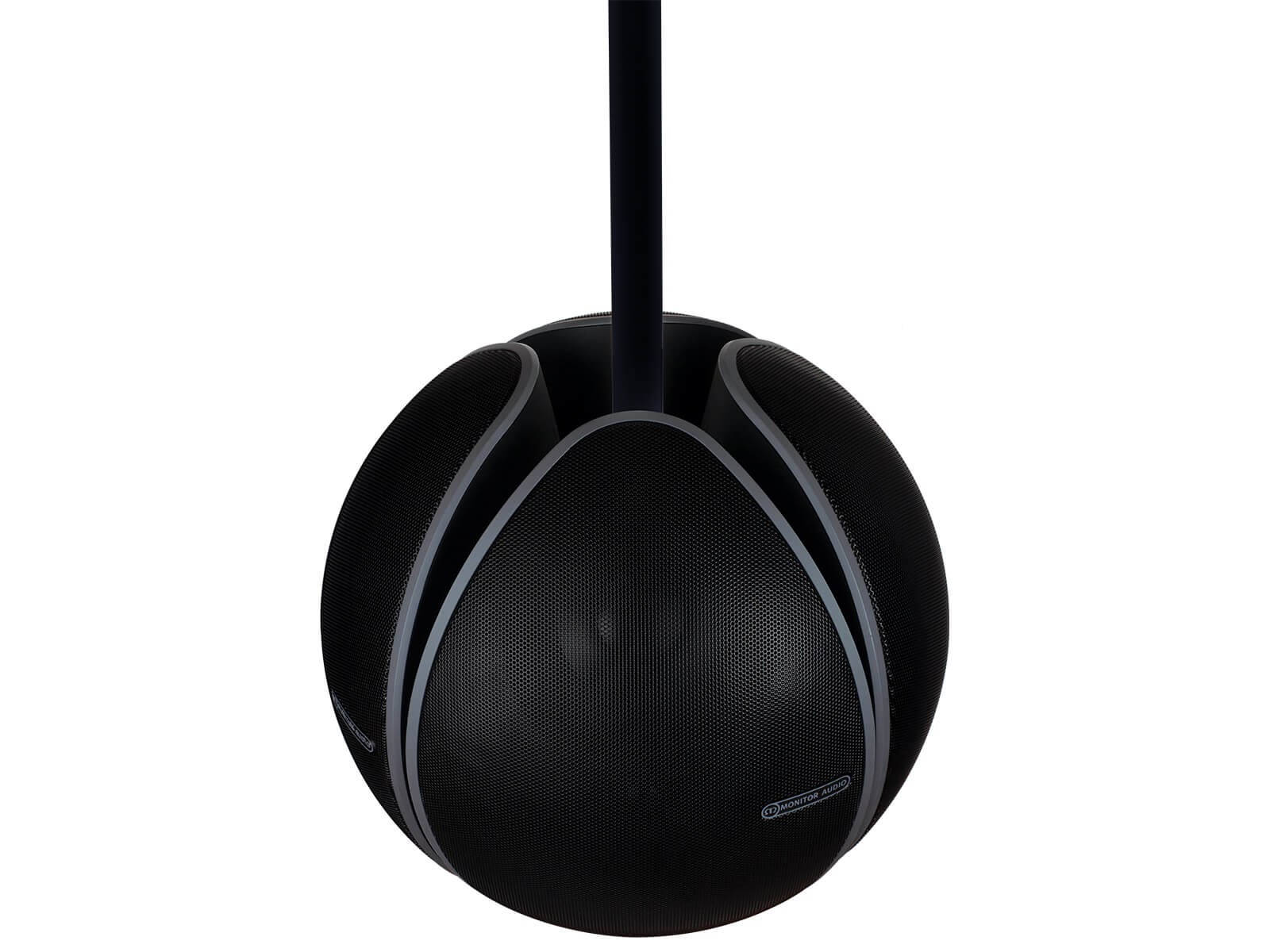

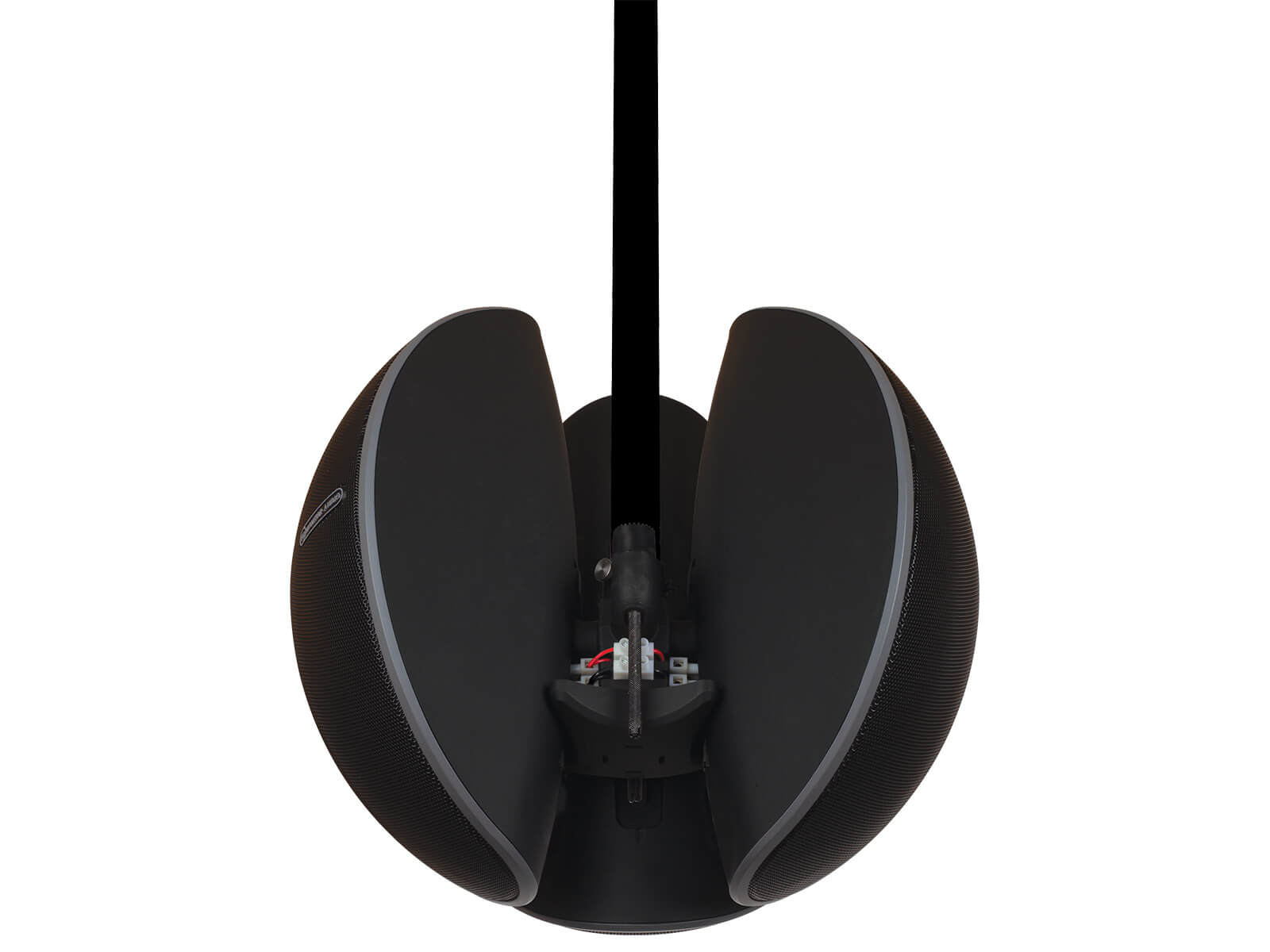

4-point cluster bracket – vertical.
Drive Unit Complement
2 x 4″ Drivers featuring C-CAM metal cone technology
25 mm (1″) C-CAM dome tweeter
Dimensions (H x W x D)
335.9 x 243.2 x 150 mm (131/4 x 99/16 x 57/8″)
Weight
3.56 kg (7 lb 14 oz)
Finishes
Black or White (Signal White, RAL 9003)
Sold As
Single Unit
