Climate Garden series

Monitor Audio CLG140

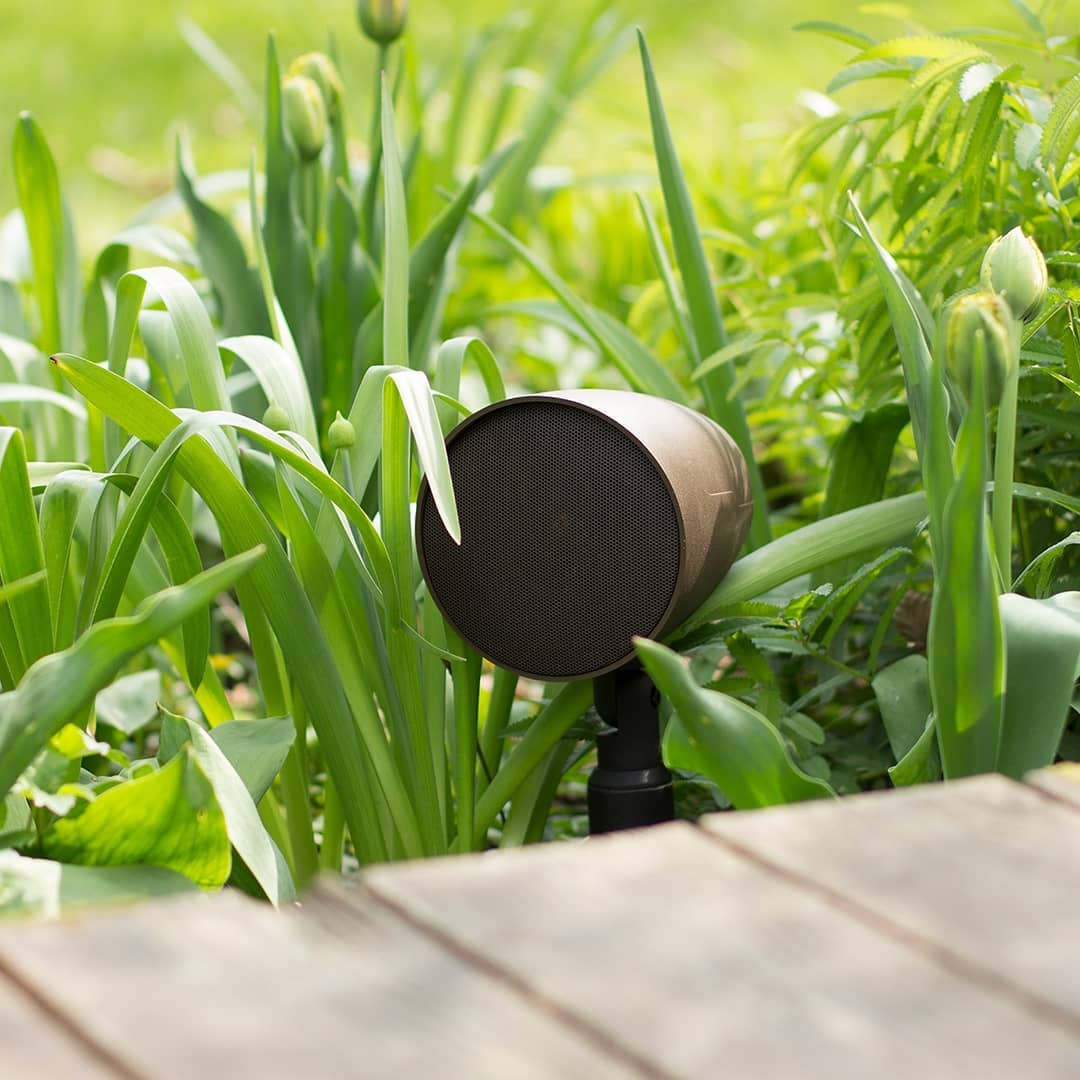

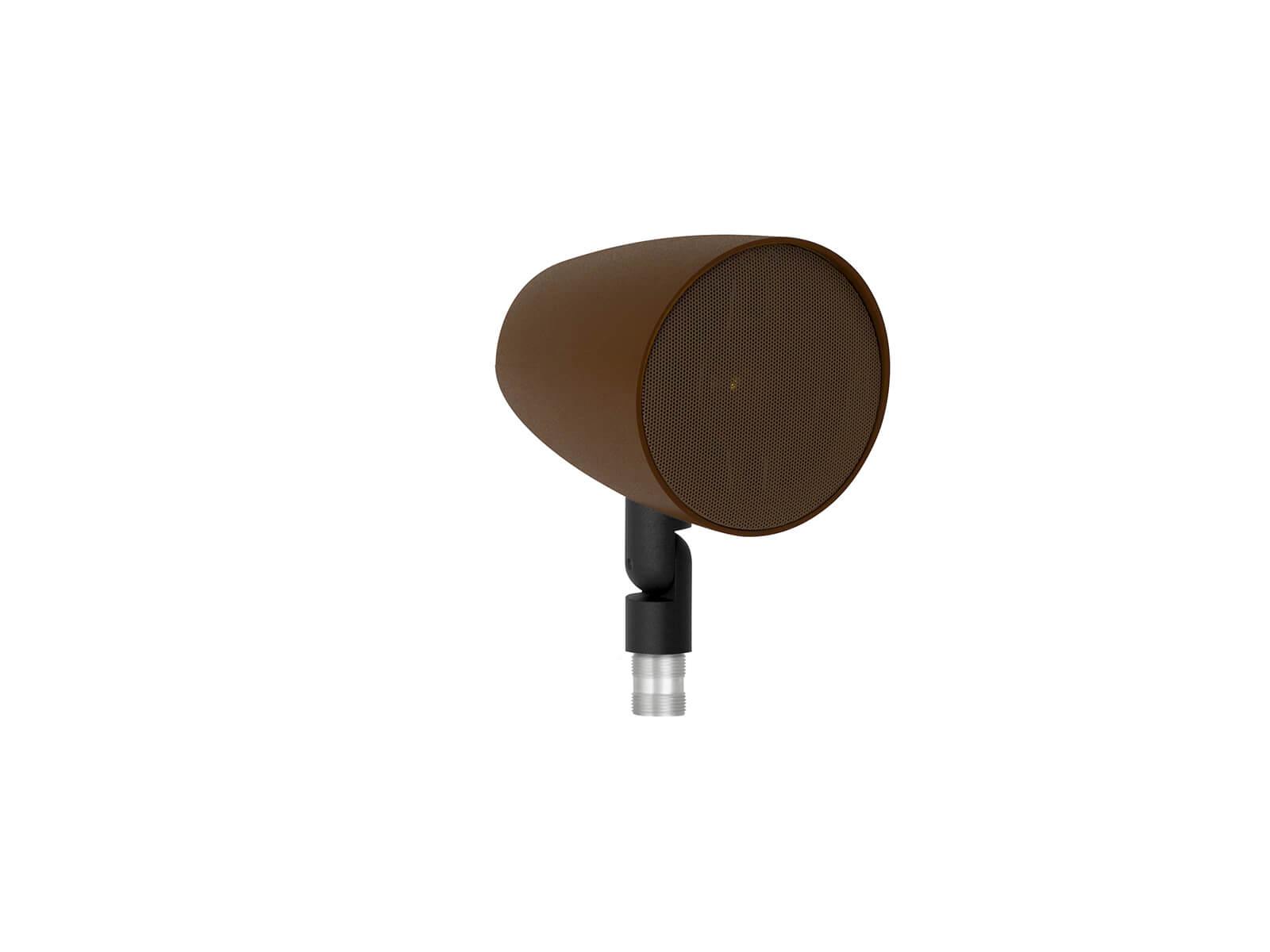

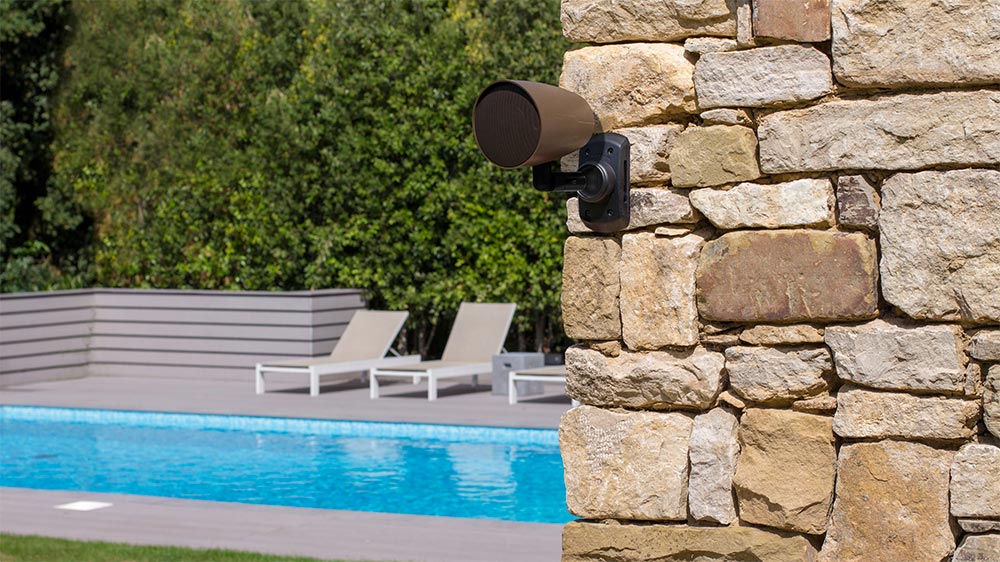

The CLG140 satellite speaker is a robust high sensitivity design built to deliver richly detailed hi-fi quality mid/high frequencies.

Engineered to withstand the most extreme temperatures and weather conditions, its rigid conical polymer enclosure houses the company’s signature 1” (25 mm) C-CAM Gold Dome tweeter co-axially aligned with a 4″ MMP bass-mid driver. The horn-shaped housing provides excellent audio directivity in free air conditions when positioned close to the garden surface on a bracket/spike assembly, which neatly encapsulates and channels the connecting cable into the ground for a discreetly installed result. Alternatively it’s possible to mount the CLG140 on a tree, pole, wall or fence.

Supplied in a durable dark brown finish for excellent coordination with garden colours, the CLG140’s casing can be painted to blend with any environment.

Technology

• 4″ MMP II bass-midrange driver
• Coaxially aligned 25 mm C-CAM Gold Dome tweeter
• Optimised for high sensitivity and wide dispersion
• Internal matching transformer for 70/100 V line level operation
• Designed to operate under extreme climatic conditions from -20 to 70 C
• Rigid, high impact polymer cabinet for long life and durability
• Bracket mounting made from die-cast aluminium alloy
• Garden spike (CLG-SPIKE R) and mount (CLG-MOUNT) available separately
• Certified to IP55 rating
• Encapsulated cable runs inside bracket and spike for discreet appearance
• Dark Brown finish blends with garden colours, but enclosure is paintable to blend with alternative settings
• Applications include garden and deck areas: system expands with garden size
• PTC protection against power overload

Frequency Response (-6 dB)
100 Hz — 30 KHz

Sensitivity (1W@1M)
88 dB

Line Level Voltage
70/100

Maximum SPL
104 dBA

Power Handling (RMS)
40 W (crossover set to minimum 100 Hz@12 dB/Octave)

Recommended Amplifier Requirements
10 — 40 W per speaker

Drive Unit Complement
1 x 4″ MMP II cone bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter – Coaxially oriented

Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

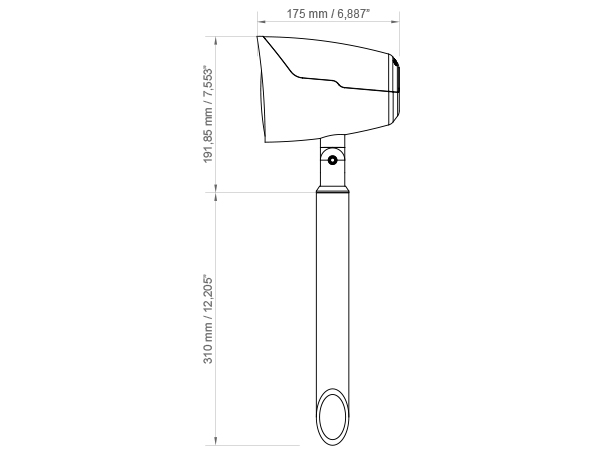

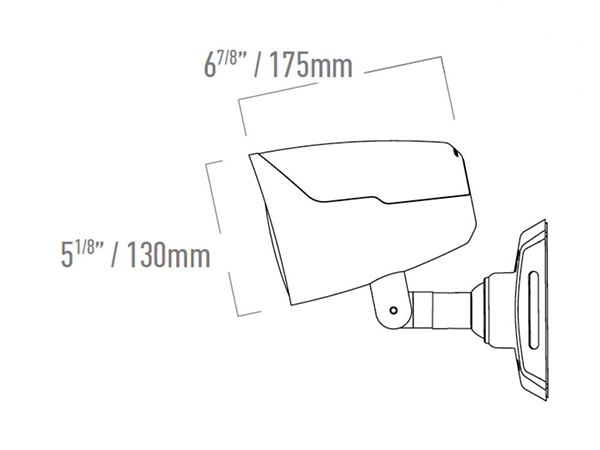

External Dimensions (Excluding Spike and Mount (H x W x D))
130 x 175 mm (51/8 x 67/8″)

Total Bracket Pivot Angle
32° in all directions

Connection
Encapsulated cable connection

Environmental Protection Rating
IP55

Colour / Finish
Brown

Dispersion
60°

Weight
2.08 kg (4 lb 10 oz)

Sold As
Single Unit

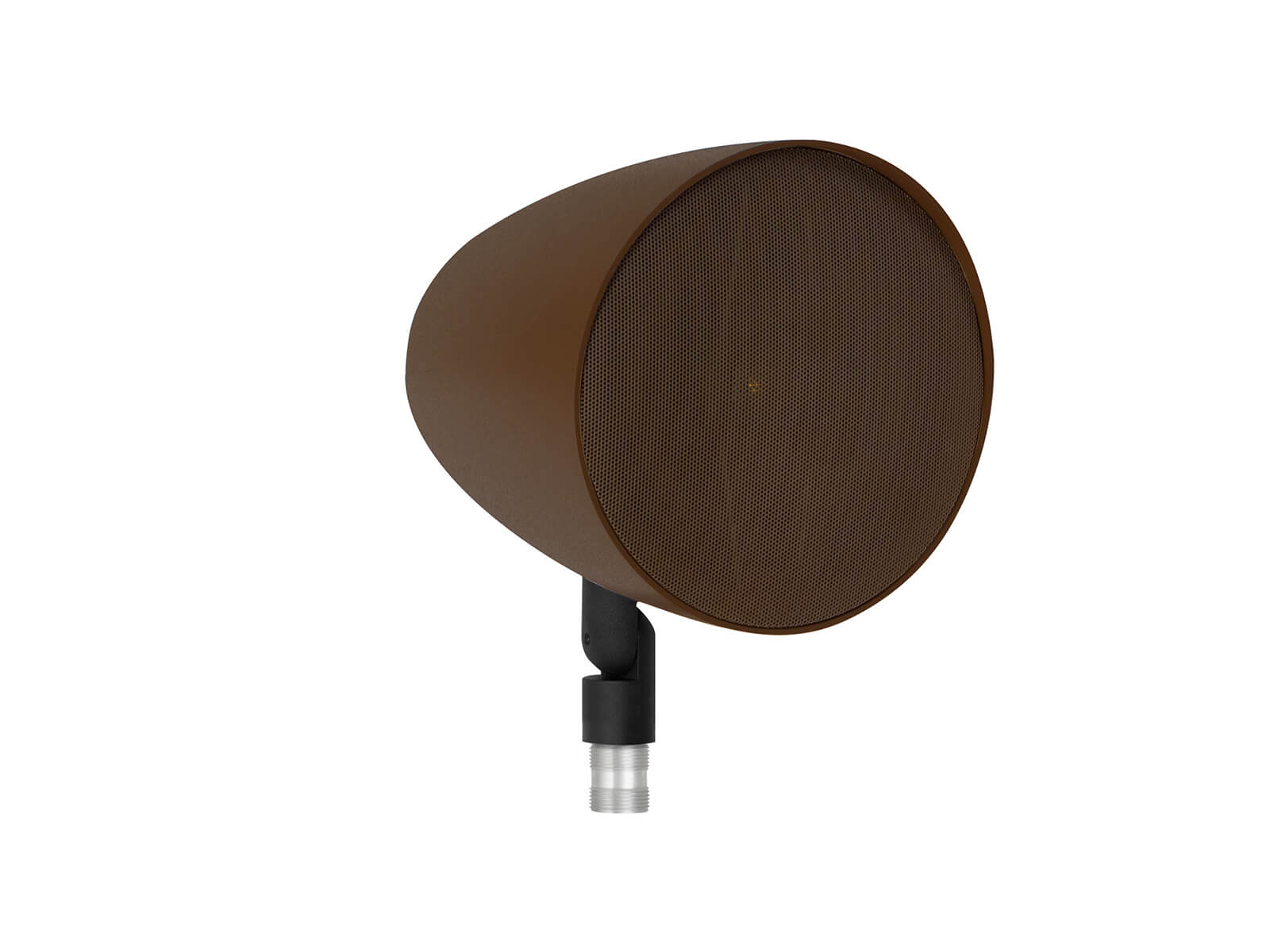

Monitor Audio CLG160

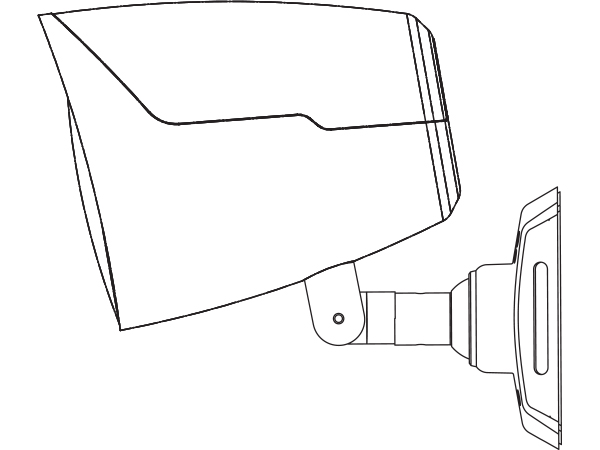

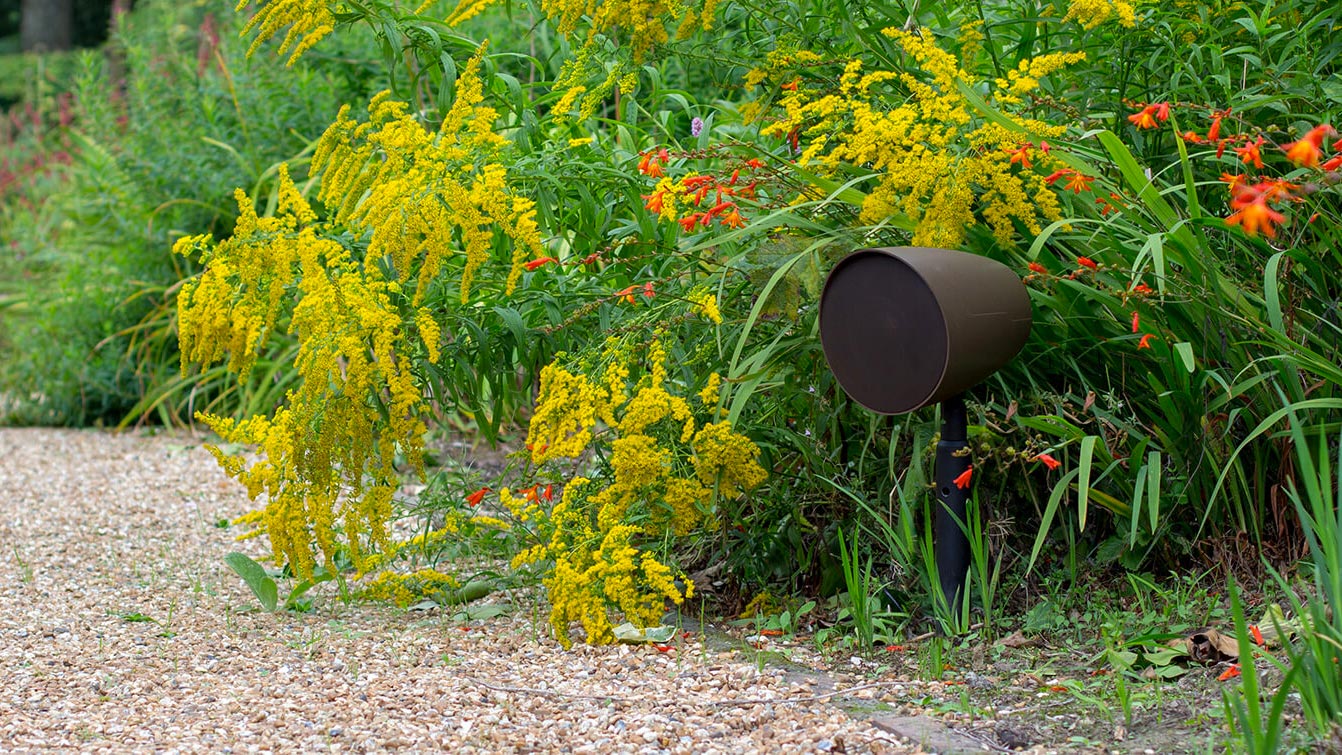

Suitable for ground level installation within the garden and around decking areas or mounted onto a tree, pole or garden fence, the new CLG160 speaker features a rigid polymer shell which ensures it is resilient to extreme weather conditions.

Installation is simple, thanks to the requirement for the speaker to be wired in a mono configuration and powered by one amplifier channel. The other amplifier channel can be used to power the subwoofer. This configuration allows the levels between bass and mid-high range to be easily equalised. Alternatively, the system can be designed to provide stereo operation if desired by creating stereo left/right zones.

Despite being installed outside, the aesthetics of the speakers are just as important. Finished in dark brown, the CLG160 blends seamlessly into this environment to provide high quality sound for outdoor entertainment, whilst not distracting from the landscape. The speaker casing can be painted a different colour, if required.

Technology

• High Performance C-CAM bass and high frequency drivers
• Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
• Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
• IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
• Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
• EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
• Gold plated push terminals with silicon cover
• Stainless fixing screws with Silicone covers
• Tweeter level attenuation (internal) – set prior to installation
• Applications: pool rooms, bathrooms, marine deck, universal outdoor installation

Monitor Audio CLG 160

Frequency Response (-6 dB)
80 Hz — 30 kHz

Sensitivity (1W@1M)
89 dB

Line Level Voltage
70/100 Volt line level

Maximum SPL
107 dBA

Power Handling (RMS)
60 Watts (crossover set to minimum 80 Hz @12 dB/Octave)

Recommended Amplifier Requirements
10 — 60 W per speaker

Drive Unit Complement
1 x 6″ MMP II cone bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter – Coaxially oriented

Crossover Frequency
80 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

External Dimensions (Excluding Spike and Mount (H x W x D))
190 x 220 mm (71/2 x 811/16″)

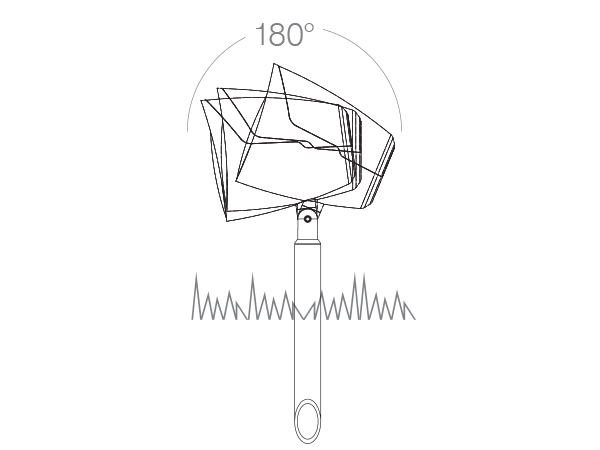

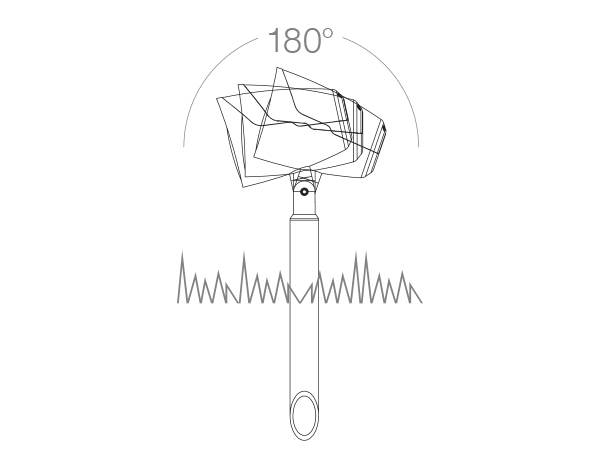

Total Bracket Pivot Angle
180 degrees

Connection
Encapsulated cable connection

Environmental Protection Rating
IP55

Operating Temperature Range
-20° to 70° C / -4° to 158° F

Colour / Finish
Dark Brown

Dispersion
60 degrees

Weight
2.76 kg (6 lb 2 oz)

Sold As
Single Unit

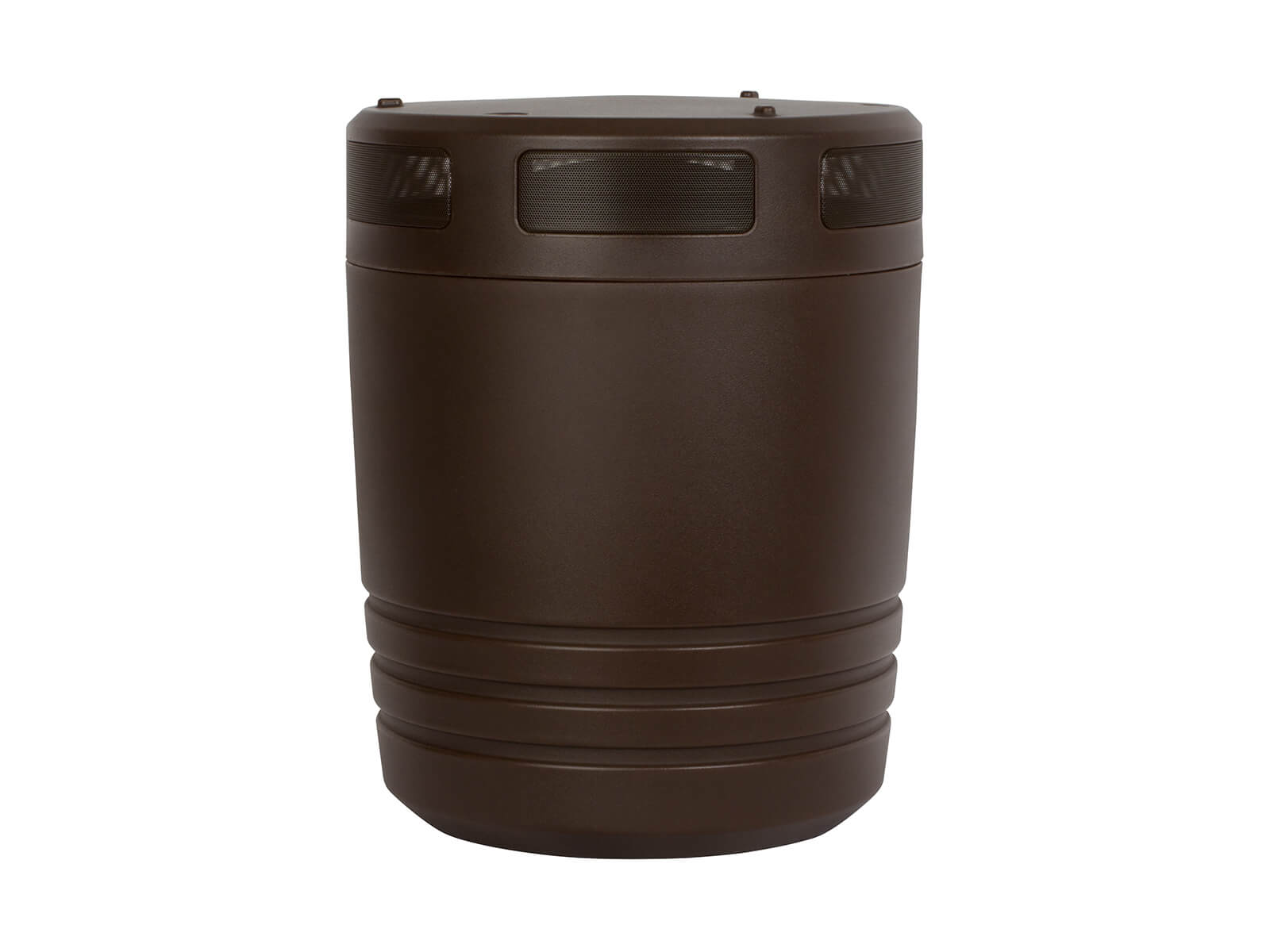

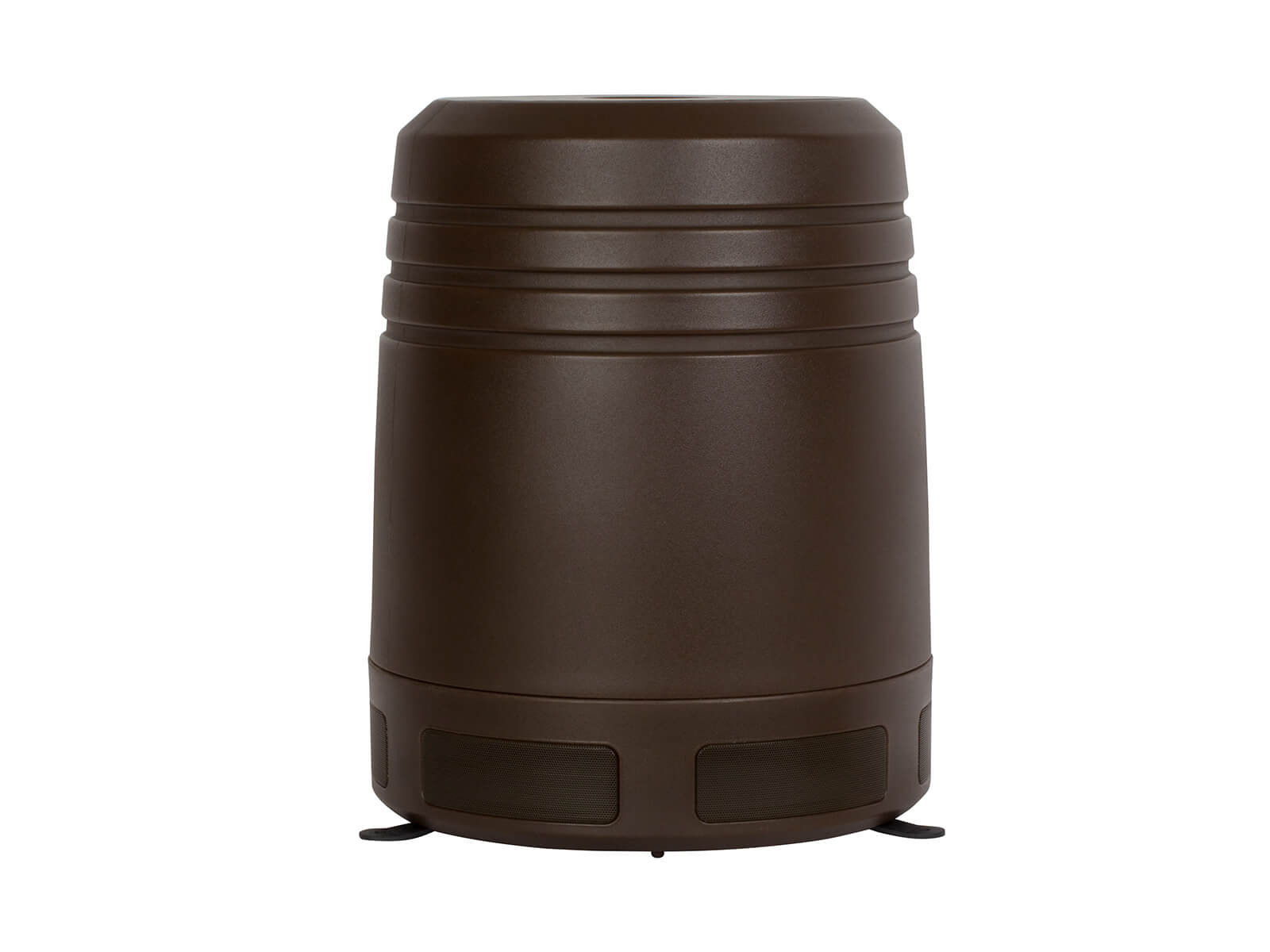

Monitor Audio CLG-W10

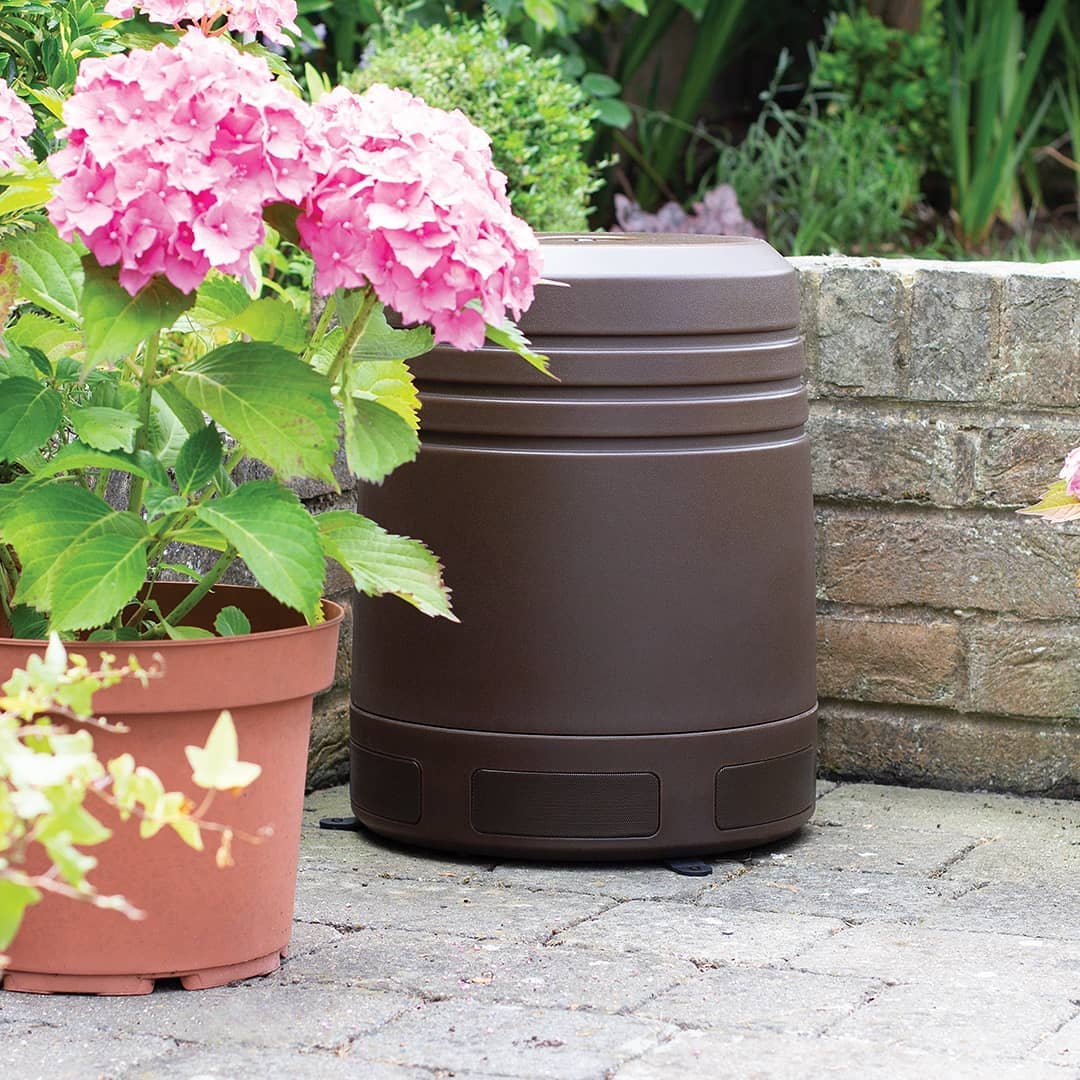

The CLG-W10 subwoofer is a new addition to Monitor Audio’s Climate Garden System of outdoor loudspeakers that have been designed to take Monitor Audio’s award-winning hi-fi audio into the garden. The CLG-W10 is weather resistant and delivers a deep bass sound into the great outdoors.

Applications

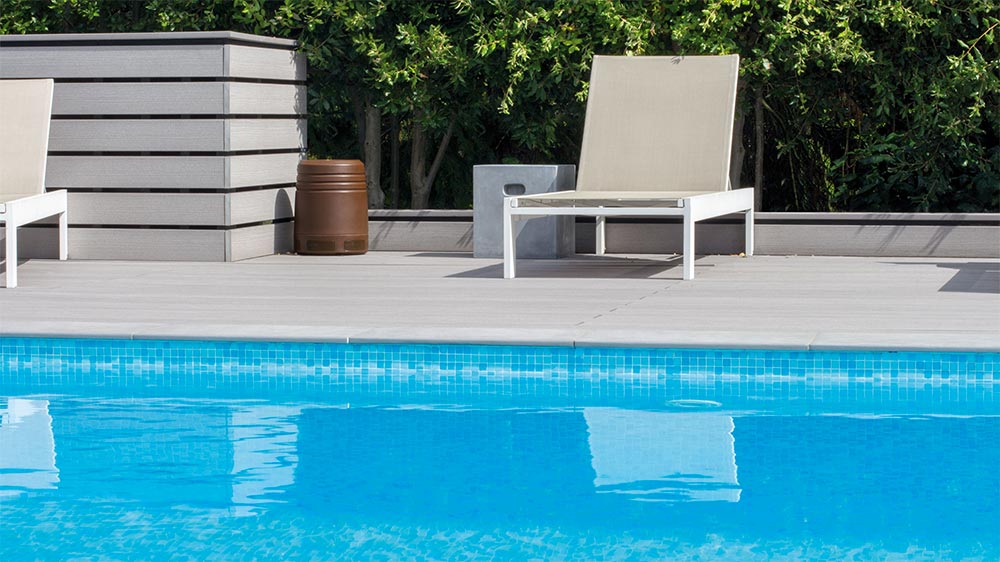

Designed to bring the bass outside, the CLG-W10 subwoofer can be partially buried in a garden border or positioned on a deck or patio area. The compact dimensions make it extremely versatile and provide a variety of installation options. The CLG-W10 is designed to augment the low frequencies when teamed with the other outdoor speakers in Monitor Audio’s Climate Garden System.

The CLG-W10 is tough and durable in extreme conditions and is rated to IP54. The unique design and manufacturing process ensures there are no joints, making the subwoofer impervious to water. Its dark brown colour blends perfectly with landscape tones and, as it is not painted or coated, the surface will not chip or deteriorate over time.

The subwoofer features a bespoke Inverted Cone Driver that utilises a rigid dome diaphragm (formed from Monitor Audio’s renowned C-CAM material) to deliver powerful, punchy bass. The inverted dome ensures any water that enters the mesh vents will drain away and, thanks to its ceramic coating, the C-CAM is impervious to moisture and tough environmental conditions. A dual spider configuration (inspired by Monitor Audio’s flagship loudspeaker series) ensures the driver stays in perfect alignment when under extreme audio loads.

All the speakers in the Climate Garden System deliver a luxurious blend of unobtrusive aesthetics and natural full-range audio to gardens of any size. A garden system can be comprised of up to sixteen CLG140 or CLG160 satellite speakers and up to three CLG-W10 or CLG-W12 subwoofers when using an IA800-2C amplifier in a 70/100 V line array. The set-up is expandable with additional satellite, subwoofer and amplifier sets according to garden area, and has an operating temperature range from -20° to +70° C / -4° to +158° F

Key Features

• Versatile installation options – buried in ground or surface mounted
• Sealed cabinet design with punchy bass down to 35 Hz
• Specially designed ‘ICD’ (Inverted Cone Driver) 10″ subwoofer, featuring C-CAM cone technology
• 70/100 V and 4 ohm tap for flexible system design – additional units can be added and ‘daisy-chained’
• Rotationally moulded polymer cabinet – tough, robust, and waterproof
• Certified to IP54 rating – reliability and peace of mind
• Dark brown finish – blends with landscape colour tones
• Applications – garden, deck, and patio in domestic and commercial installs

Note: The CLG-W10 does not feature an internal passive crossover and requires an amplifier with appropriate crossover features.

Monitor Audio CLG-W10
Monitor Audio CLG-W10

Frequency Response (-6 dB)
35 Hz — 150 Hz

Sensitivity (1W@1M)
85 dB

Nominal Impedance
4 ohms or 70/100 Volt line level (cable select)

Maximum SPL
105 dBA

Power Handling (RMS)
150 W

Recommended Amplifier Requirements
100 — 150 W

Drive Unit Complement
1 x 10″ C-CAM cone, long throw sub-bass driver

Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

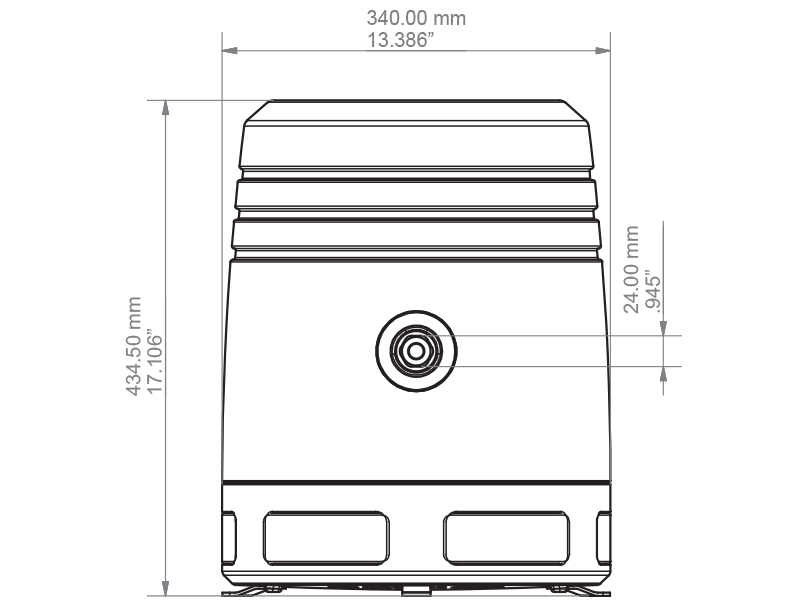

External Dimensions (H x W x D)
340 x 340 x 434.5 mm (133/8 x 133/8 x 171/8″)

Connection
Encapsulated cable connection

Environmental Protection Rating
IP54

Colour / Finish
Brown

Weight
11.8 kg (26 lb)

Sold As
Single Unit

Monitor Audio CLG-W12

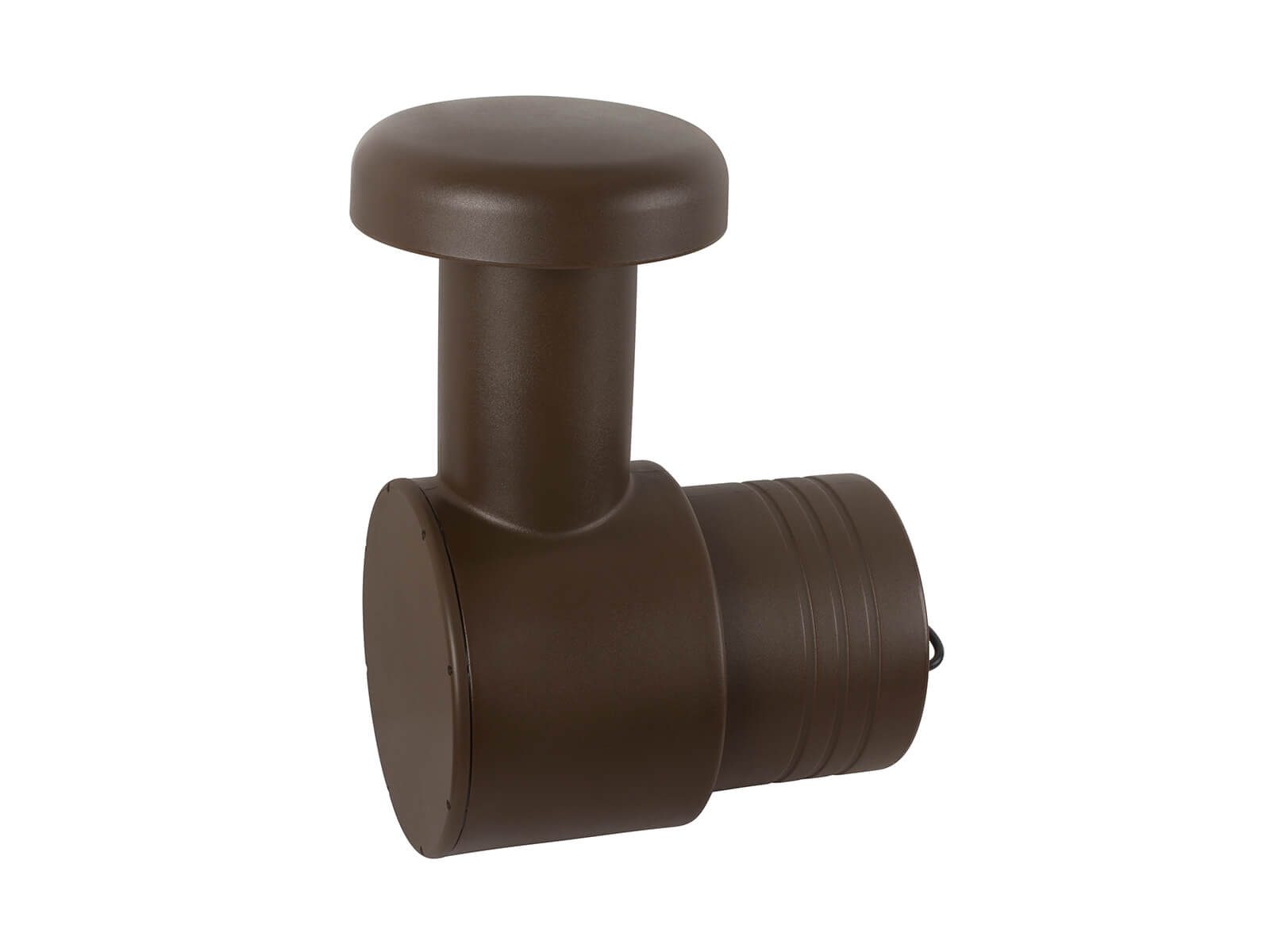

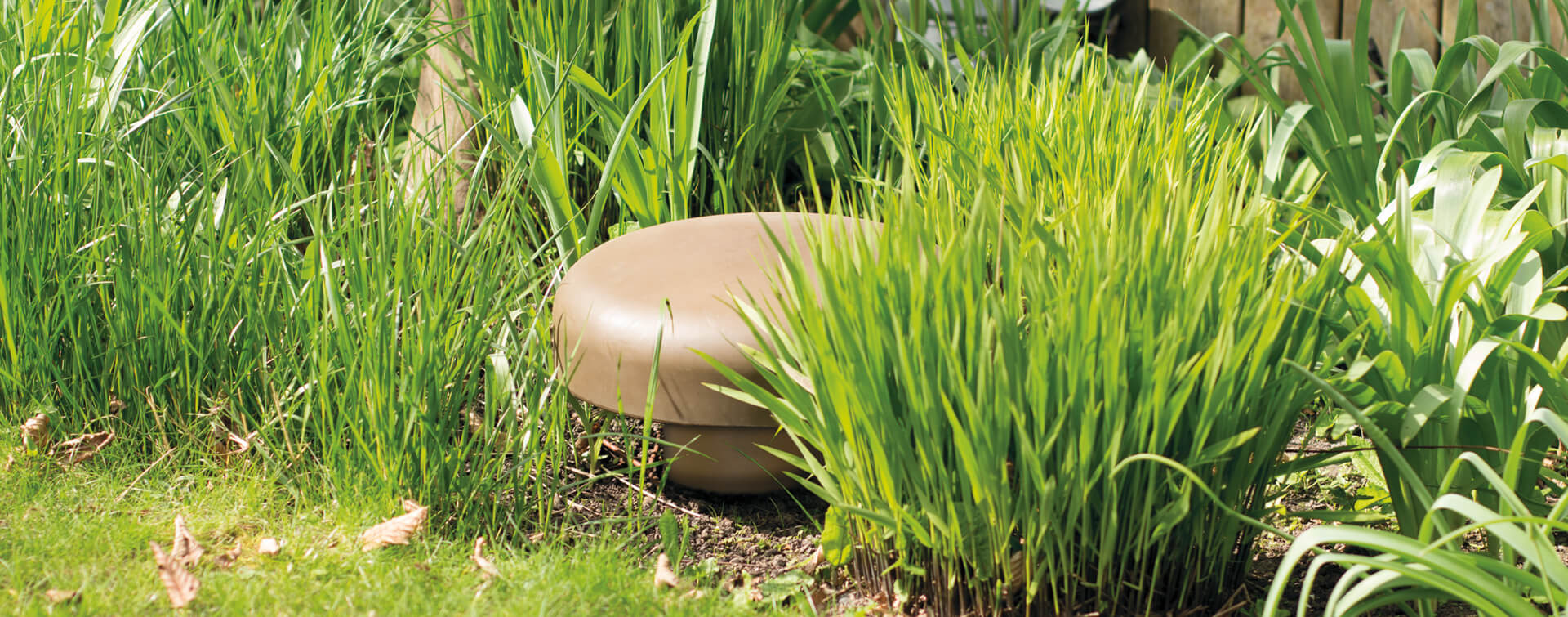

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12″ C-CAM driver which sits in a waterproof rotationally-moulded polymer enclosure buried below the garden surface – only the CLG-W12’s domed output port is visible.

From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140/CLG160 satellites for punchy and articulate full-range garden sound.

The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.

In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.

Technology

• Below ground garden installation. On patios or decks will install within a suitably sized planter
• Extended response down to 30 Hz
• Long throw 12″ sub-woofer driver featuring C-CAM cone technology and rigid die-cast chassis
• Bandpass cabinet enclosure delivers high efficiency and punchy, extended bass
• 70/100 V and 4 ohm tap for flexible system design: additional units can be added and ‘daisy-chained’ together
• Robust moulded cabinet: strong and waterproof with fewer joints to compromise structural integrity
• Certified to IP54 Ingress Protection rating
• Dark brown finish blends with garden colours
• Applications: garden, deck and patio, theme parks

Frequency Response (-6 dB)
30 Hz — 100 Hz

Sensitivity (1W@1M)
87 dB

Nominal Impedance
4 ohms or 70/100 Volt line level (cable select)

Maximum SPL
110 dBA

Power Handling (RMS)
250 W

Recommended Amplifier Requirements
100 — 250 W

Drive Unit Complement
1 x 12″ C-CAM cone, long throw sub-bass driver

Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

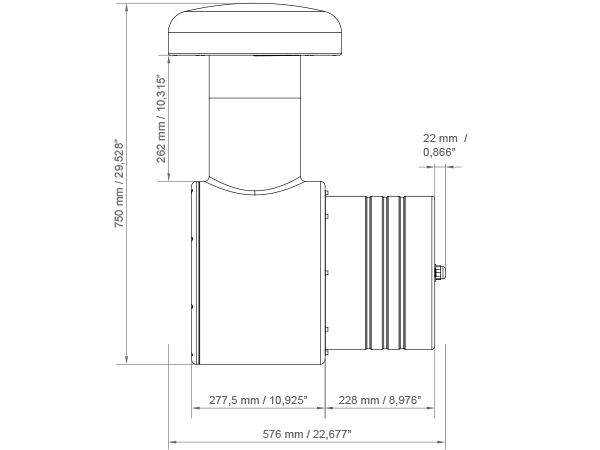

External Dimensions (H x W x D)
750 x 380 x 505.5 mm (191/2 x 1415/16 x 197/8″)

Connection
Encapsulated cable connection

Environmental Protection Rating
IP54

Colour / Finish
Brown

Weight
19.5 kg (42 lb 14 oz)

Sold As
Single Unit
