All Weather series

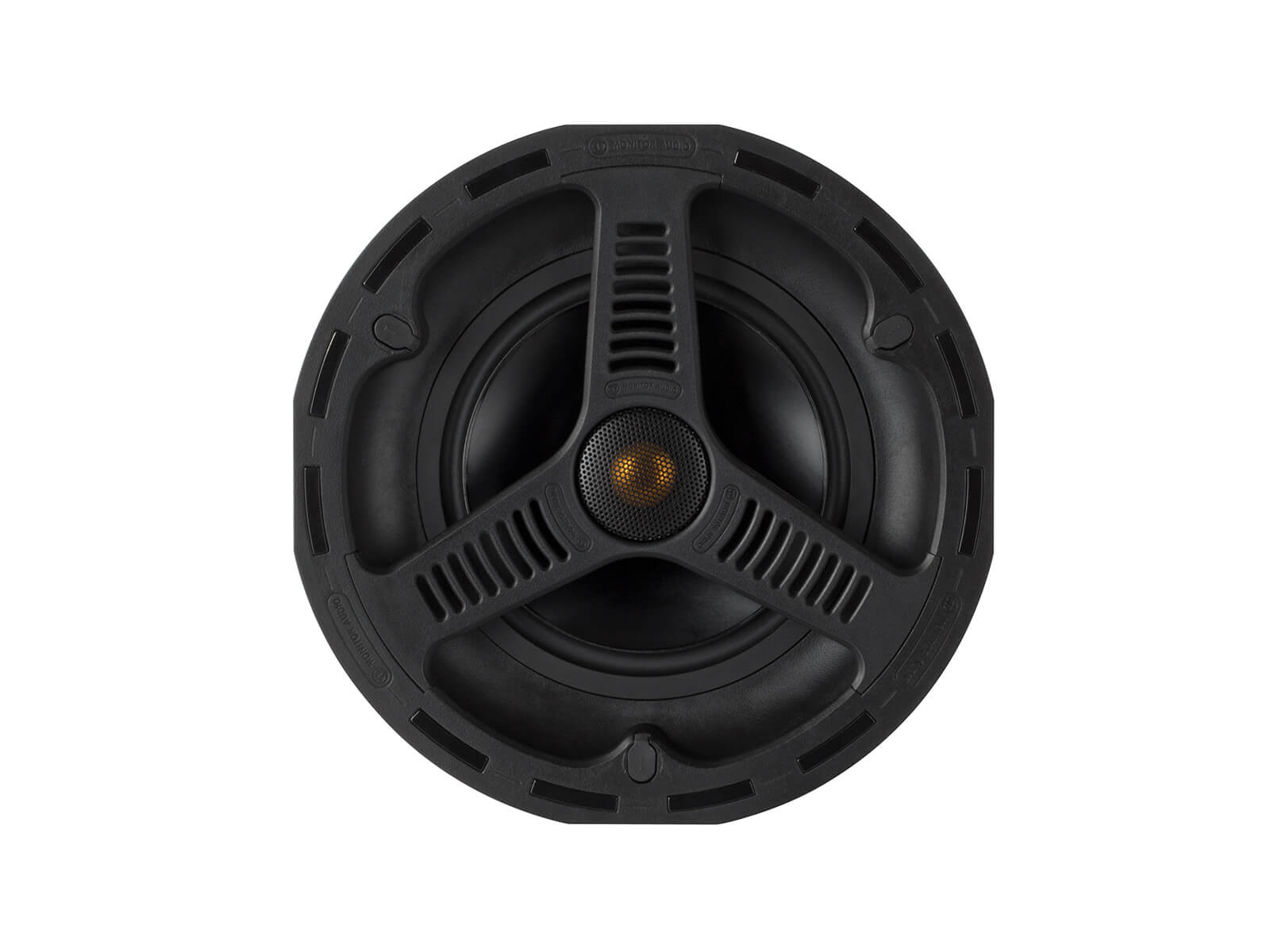

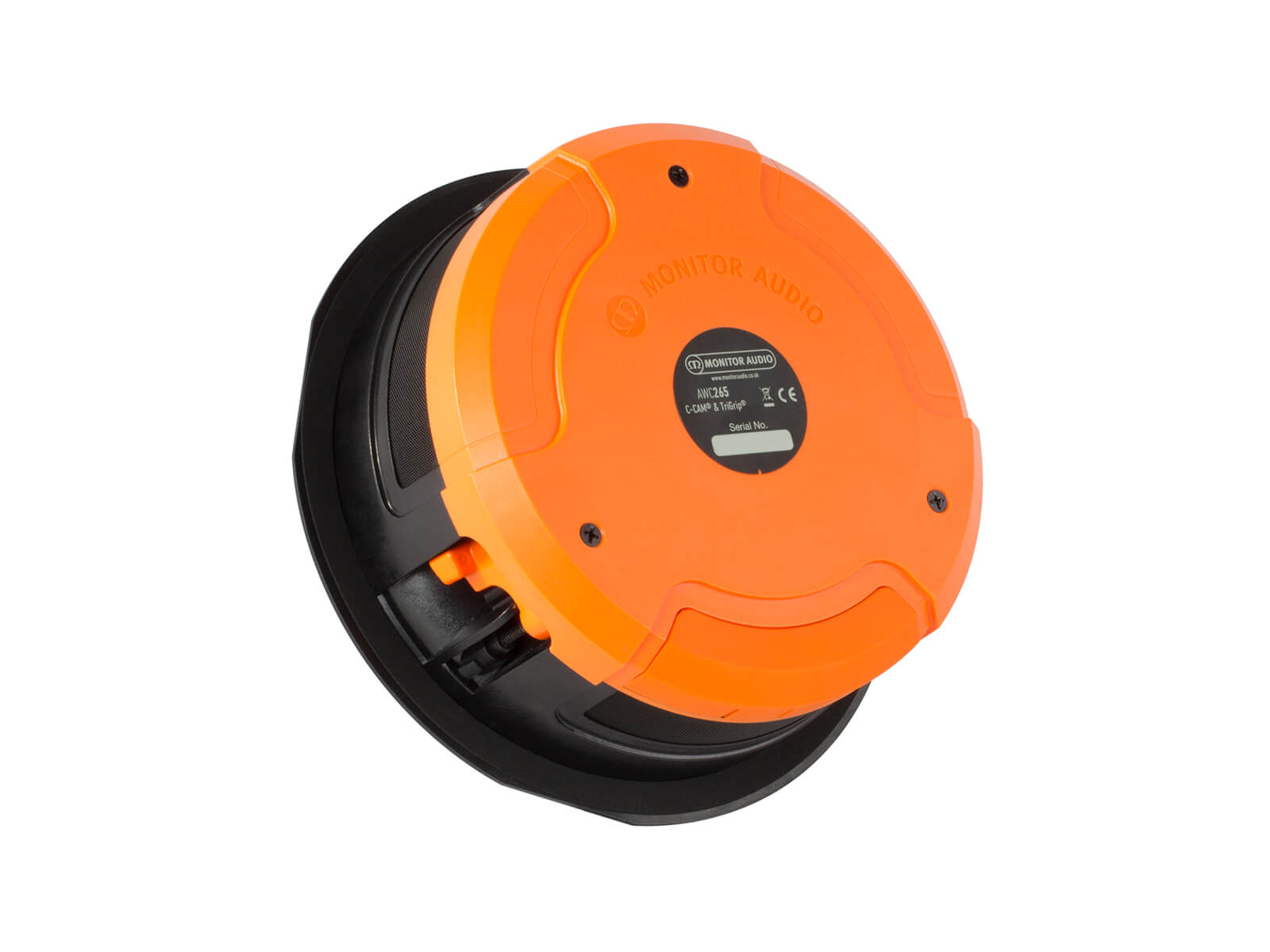

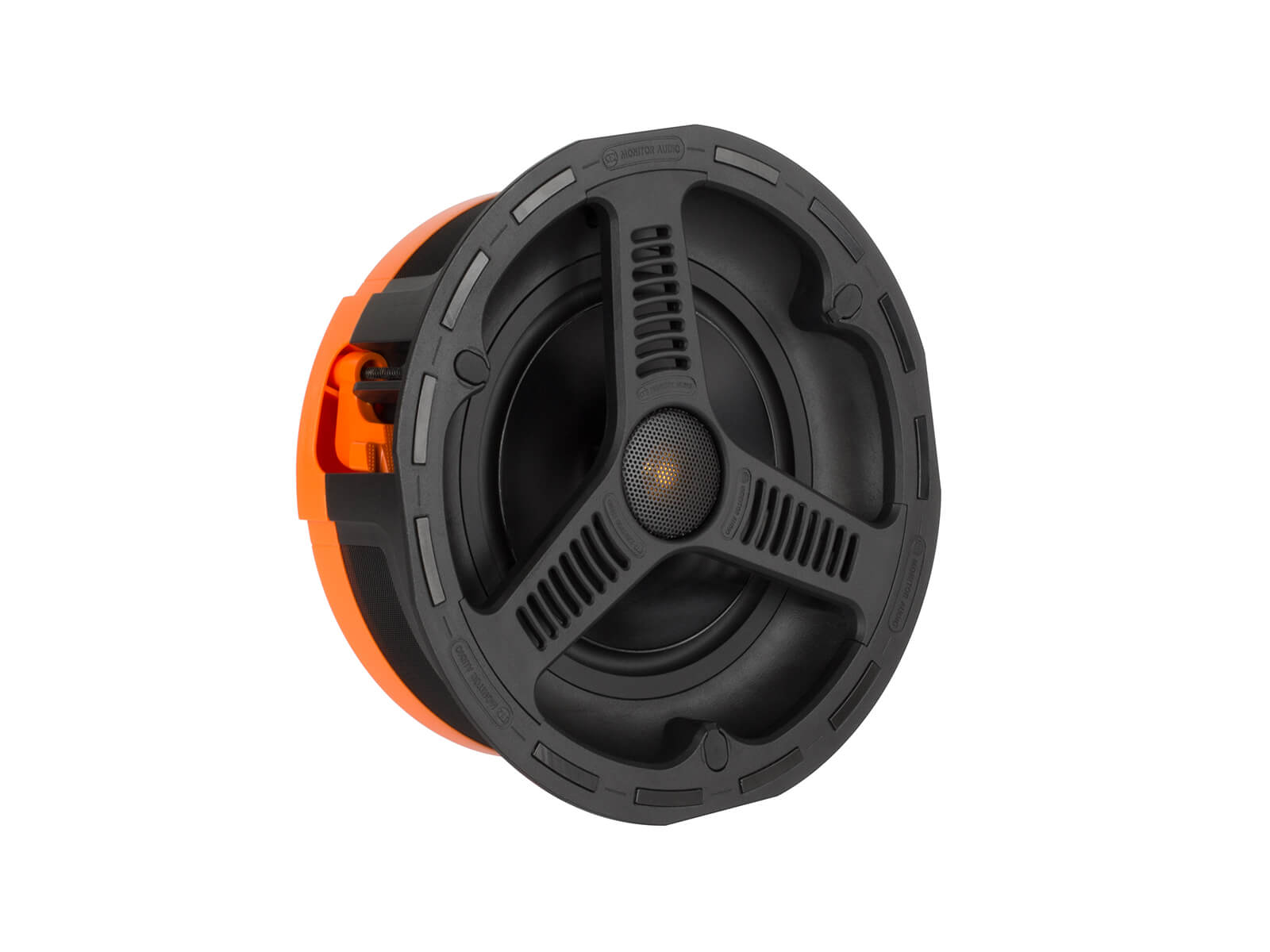

Monitor Audio AWC265
Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC265 comprises a stylish two-way 6 1/2” C-CAM bass driver.
Optional square grille can be used with this model.

Technology



60 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB
Nominal Impedance
8 ohms
Maximum SPL
105.8 dBA
Power Handling (RMS)
60 W
Recommended Amplifier Requirements
20 — 60 W
Drivers
6.5″ C-CAM cone bass driver
1″ C-CAM Gold Dome tweeter (fixed angle)
Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) – Adjustable at the point of installation
Adjustment Controls
2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)
251.71 mm (915/16“)
Overall Depth (Including Grille)
93.5 mm (31/2“)
Cut-Out Hole Diameter
211 mm (81/4“)
Mounting Depth
88.5 mm (31/2“)
Optional Square Grille – Outer Dimensions
249 x 249 mm (9 3/16“)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

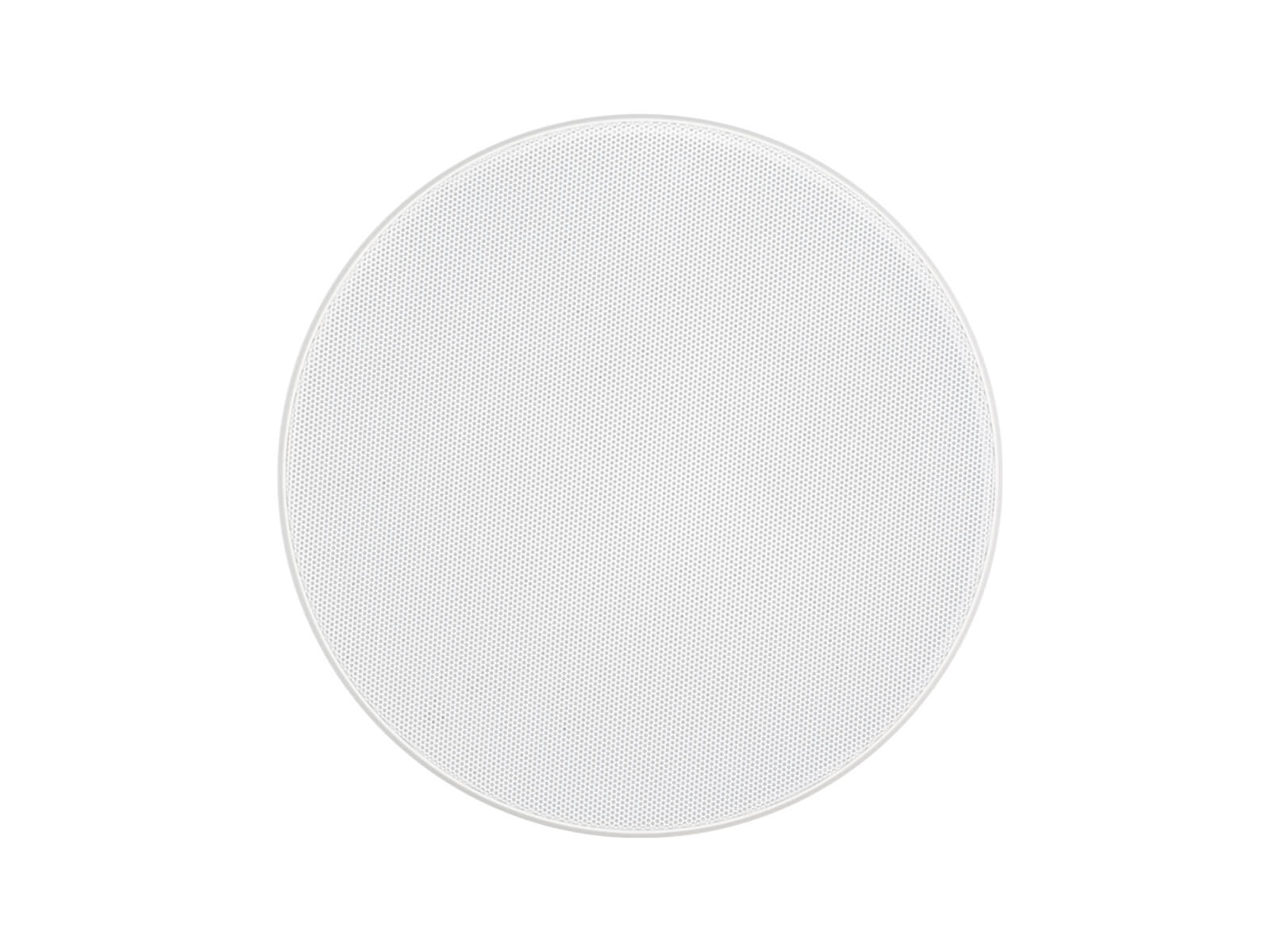

Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket

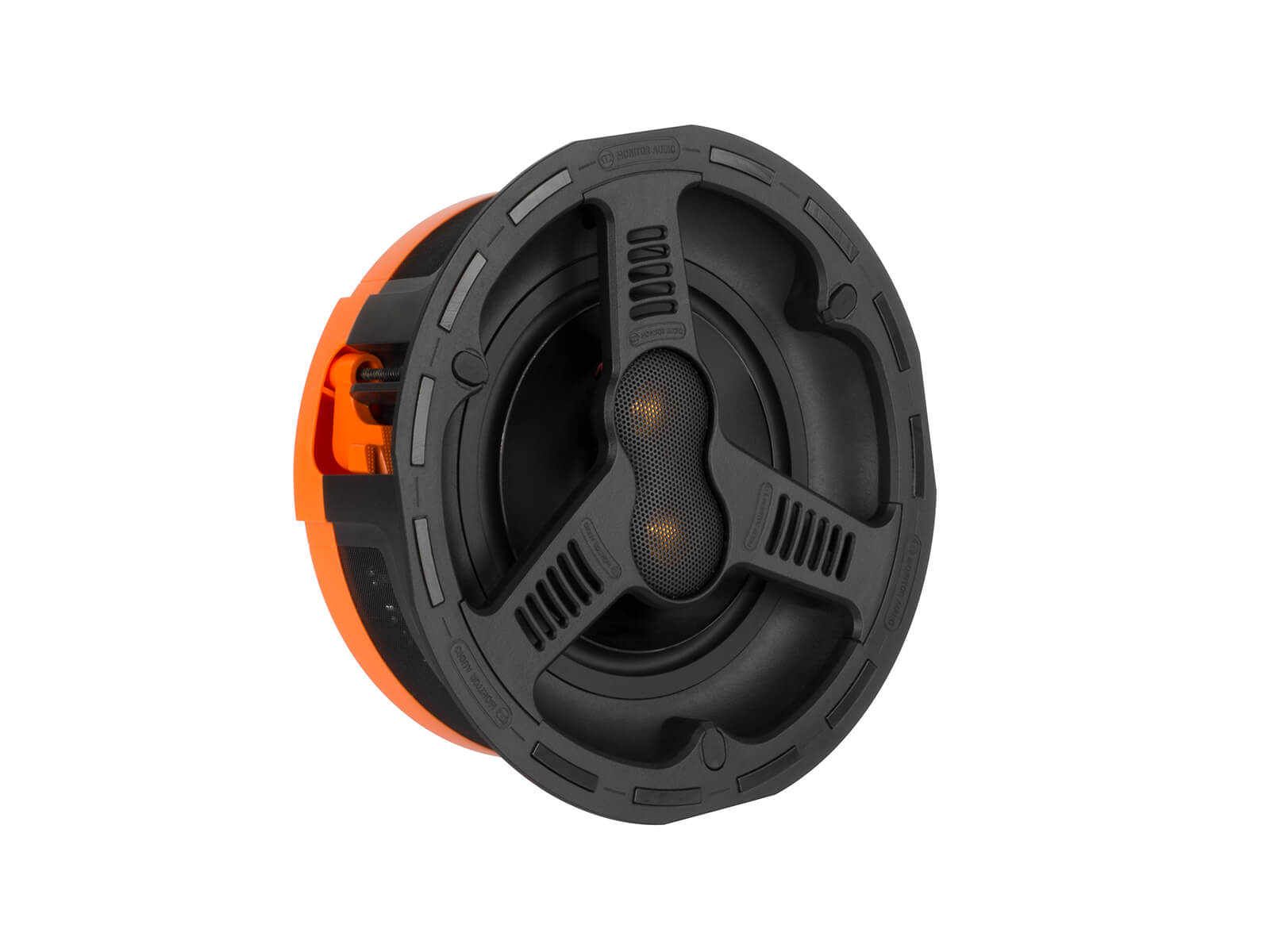

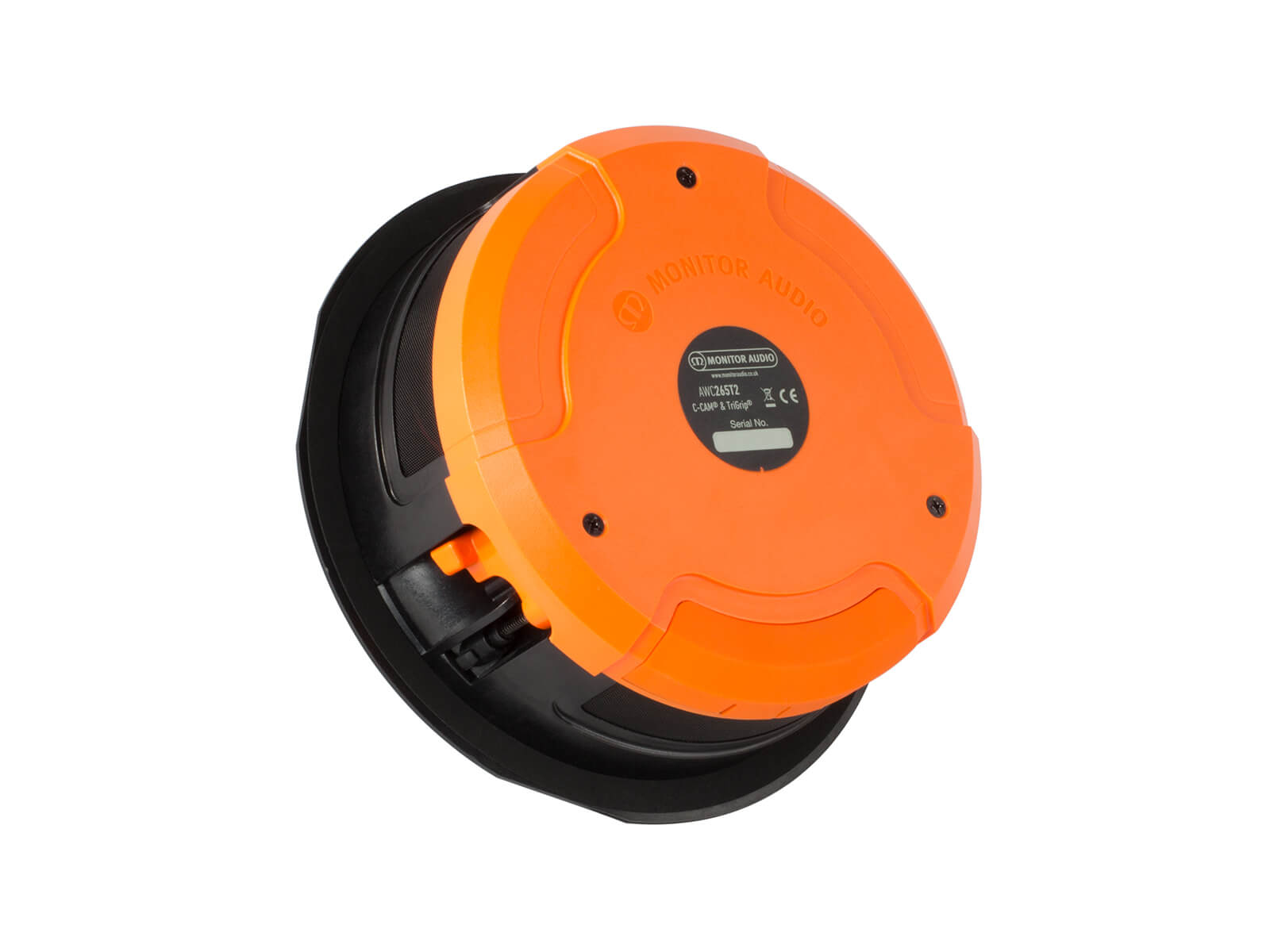

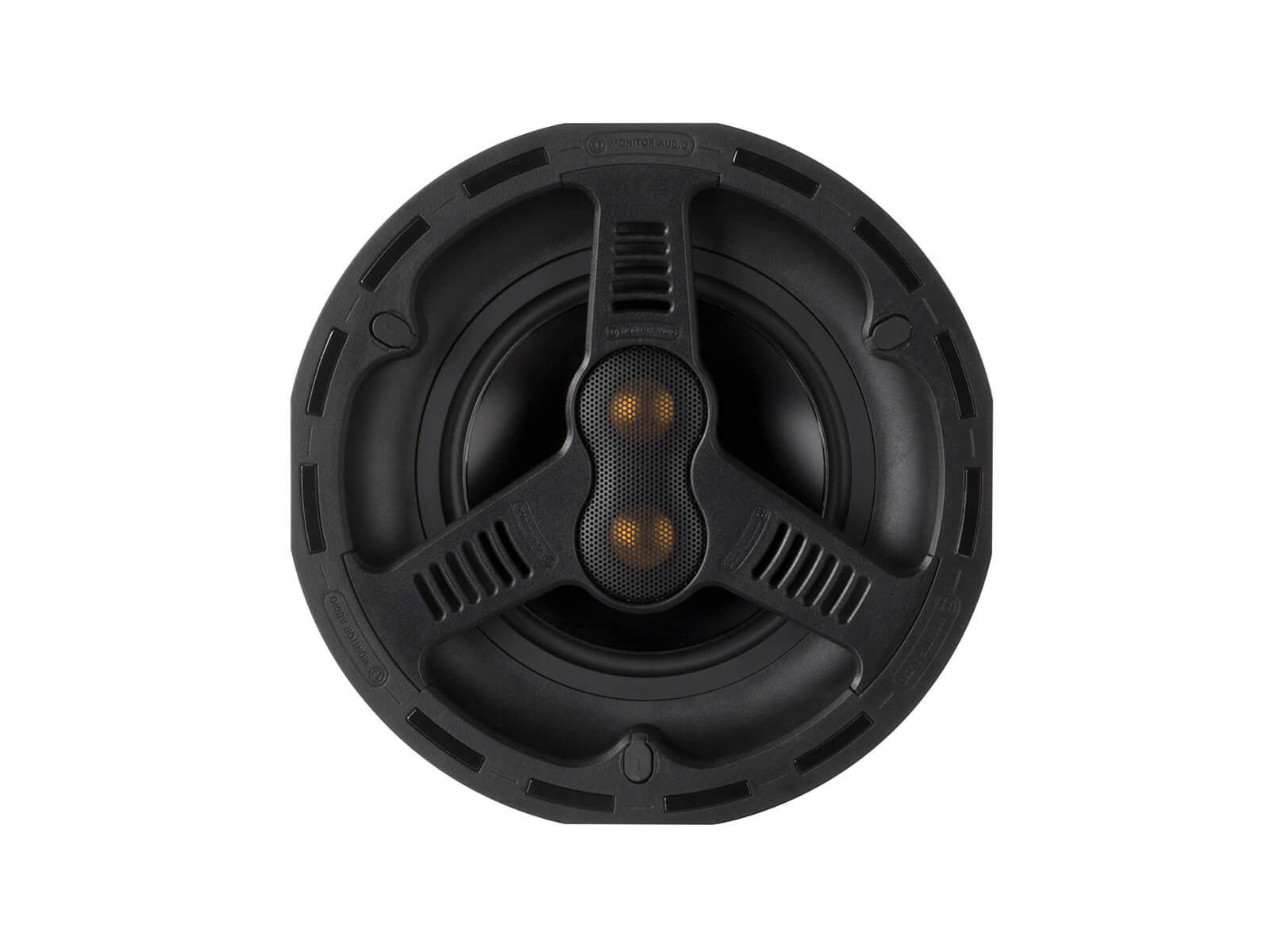

Monitor Audio AWC265-T2
Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1″ C-CAM tweeters, which are twinned and angled on the AWC265-T2 to deliver high performance stereo sound from a single unit where space is limited.
Optional square grille can be used with this model.

Technology
• High Performance C-CAM bass and high frequency drivers
• Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
• Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
• IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
• Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
• EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
• Gold plated push terminals with silicon cover
• Stainless fixing screws with Silicone covers
• Tweeter level attenuation (internal) – set prior to installation

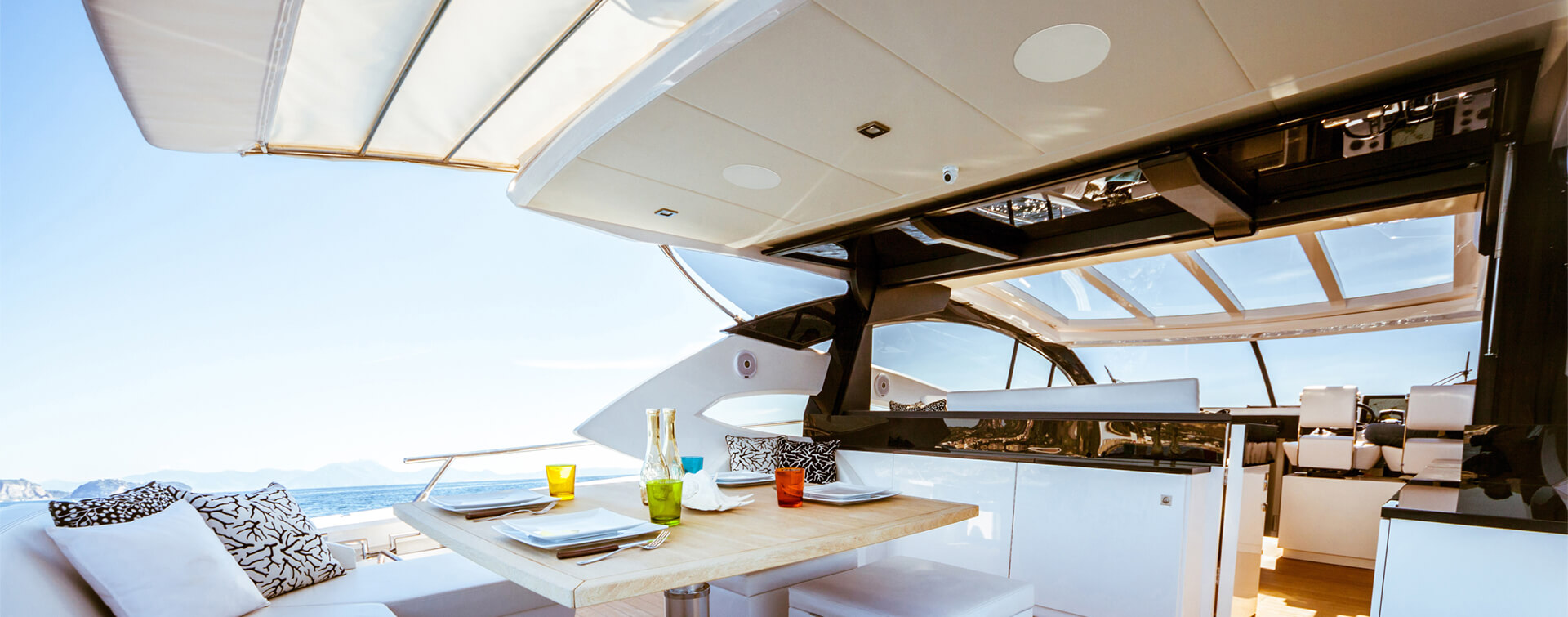

• Applications: pool rooms, bathrooms, marine deck, universal outdoor installation



Frequency Response
60 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB (both channels driven)
Nominal Impedance
8 + 8 ohms
Maximum SPL
105.8 dBA
Power Handling (RMS)
60 W
Recommended Amplifier Requirements
20 — 60 W
Drivers
6.5″ C-CAM cone bass driver
2 x 1″ C-CAM Gold Dome tweeters (fixed angle)
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) – Adjustable at the point of installation
Connection
2 x (2 pairs) Gold plated push style terminal
Overall Diameter (Including Grille)
251.71 mm (915/16″)
Overall Depth (Including Grille)
93.5 mm (31/2″)
Cut-Out Hole Diameter
211 mm (81/4″)
Mounting Depth
88.5 mm (31/2″)
Optional Square Grille – Outer Dimensions
249 x 249 mm (9 3/16″)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket

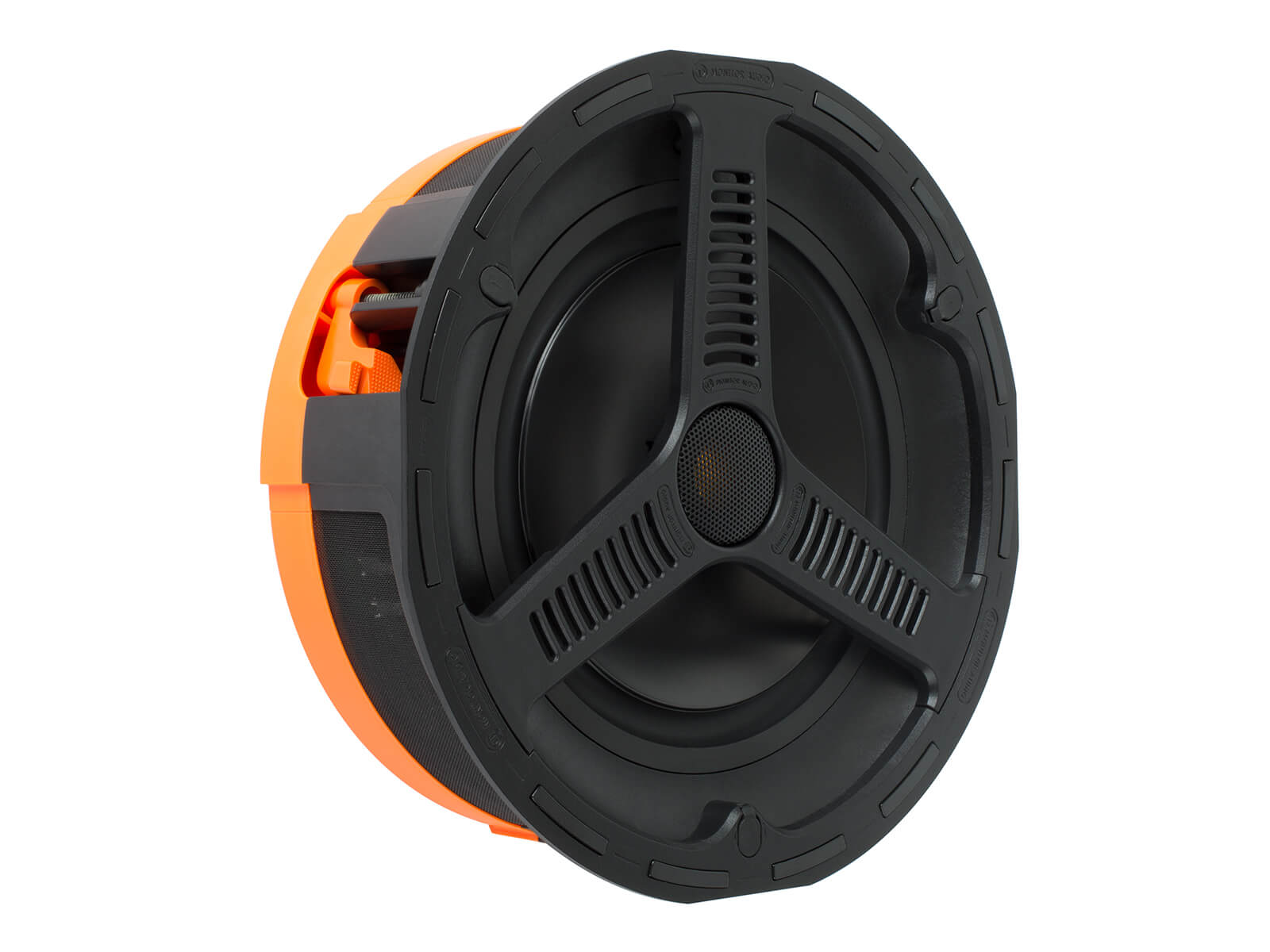

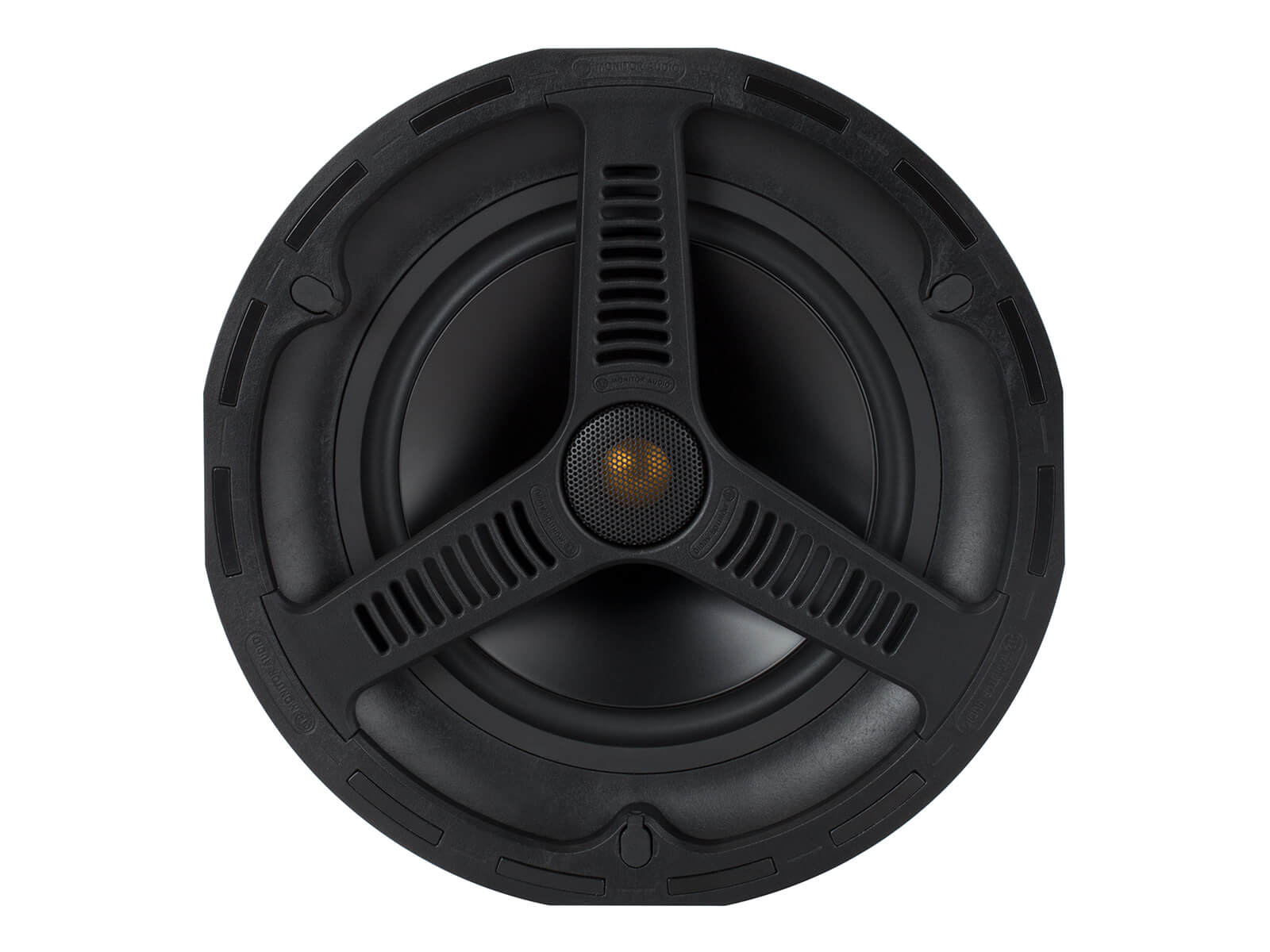

Monitor Audio AWC280
Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC280 comprises a stylish two-way 8” C-CAM bass driver.
Optional square grille can be used with this model.

Technology


Frequency Response
50 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Nominal Impedance
8 ohms
Maximum SPL
109 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
20 — 100 W
Drivers
8″ C-CAM cone bass driver
1″ C-CAM Gold Dome tweeter (fixed angle)
Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) – Adjustable at the point of installation
Adjustment Controls
2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)
285 mm (111/4″)
Overall Depth (Including Grille)
102.5 mm (41/32″)
Cut-Out Hole Diameter
247 mm (93/4″)
Mounting Depth
97.6 mm (37/8″)
Optional Square Grille – Outer Dimensions
285 x 285 mm (111/4″)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.8 kg (6 lb 2 oz)
Pre-Construction Bracket

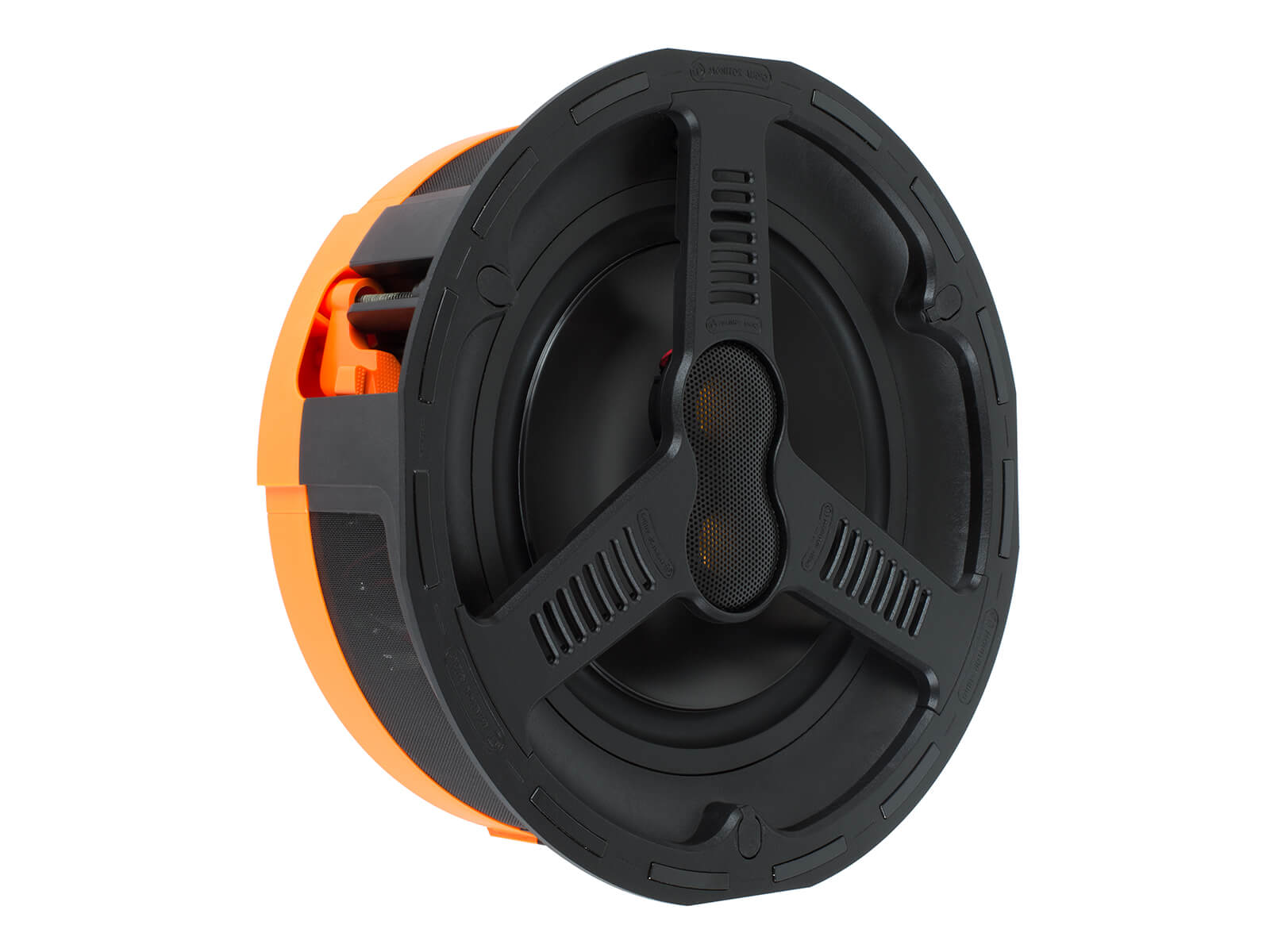

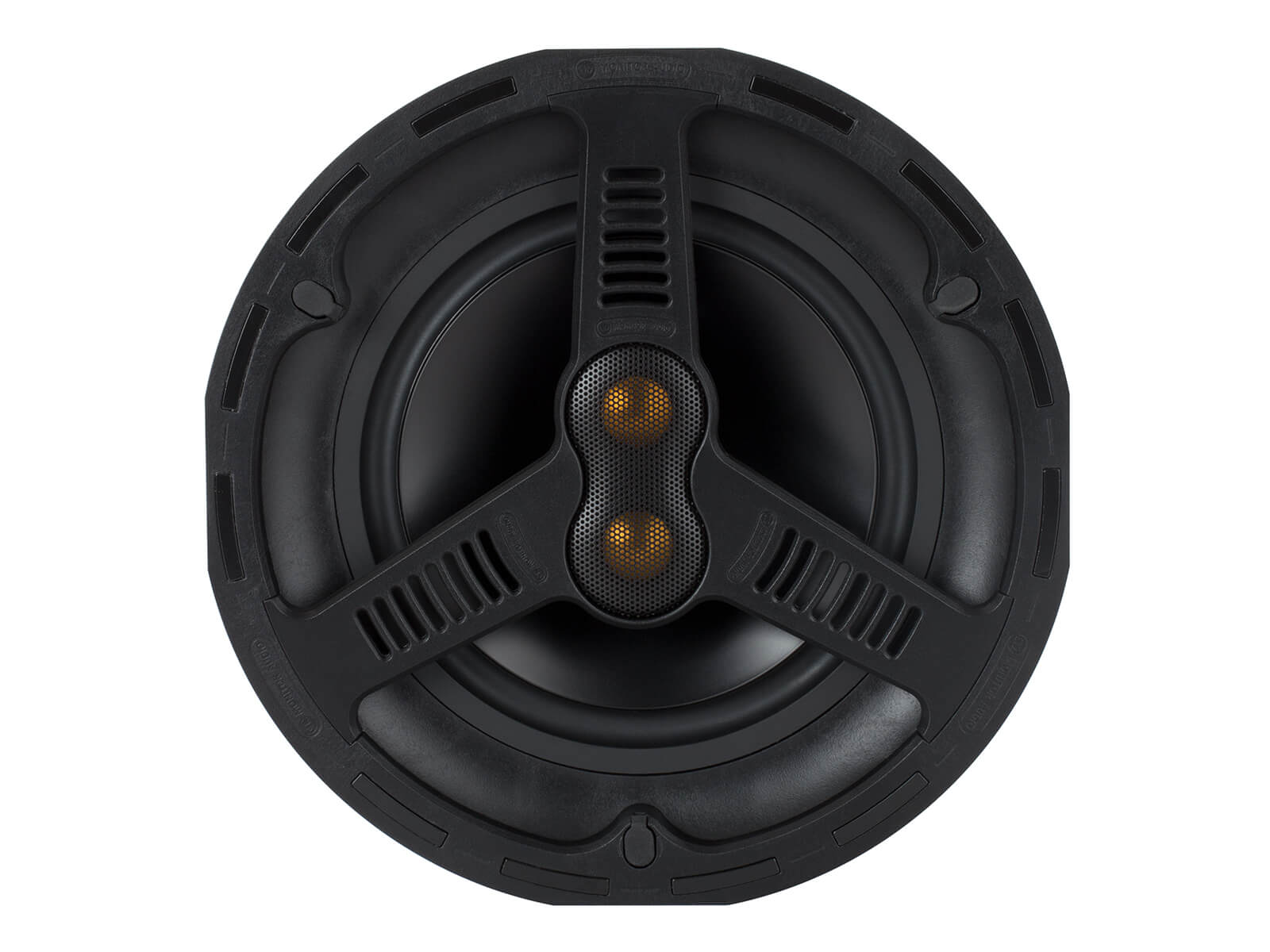

Monitor Audio AWC280-T2
Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1″ C-CAM tweeters, which are twinned and angled on the AWC280-T2 to deliver high performance stereo sound from a single unit where space is limited.

Technology
- High Performance C-CAM bass and high frequency drivers
- Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) – set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation


Frequency Response
50 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB (both channels driven)
Nominal Impedance
8 + 8 ohms
Maximum SPL
109 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
20 — 100 W
Drivers
8″ C-CAM cone bass driver
2 x 1″ C-CAM Gold Dome tweeters (fixed angle)
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) – Adjustable at the point of installation
Connection
2 x (2 pairs) Gold plated push style terminal
Overall Diameter (Including Grille)
285 mm (111/4″)
Overall Depth (Including Grille)
102.5 mm (41/32″)
Cut-Out Hole Diameter
247 mm (93/4″)
Mounting Depth
97.6 mm (37/8″)
Optional Square Grille – Outer Dimensions
285 x 285 mm (111/4″)
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.8 kg (6 lb 2 oz)
Pre-Construction Bracket
