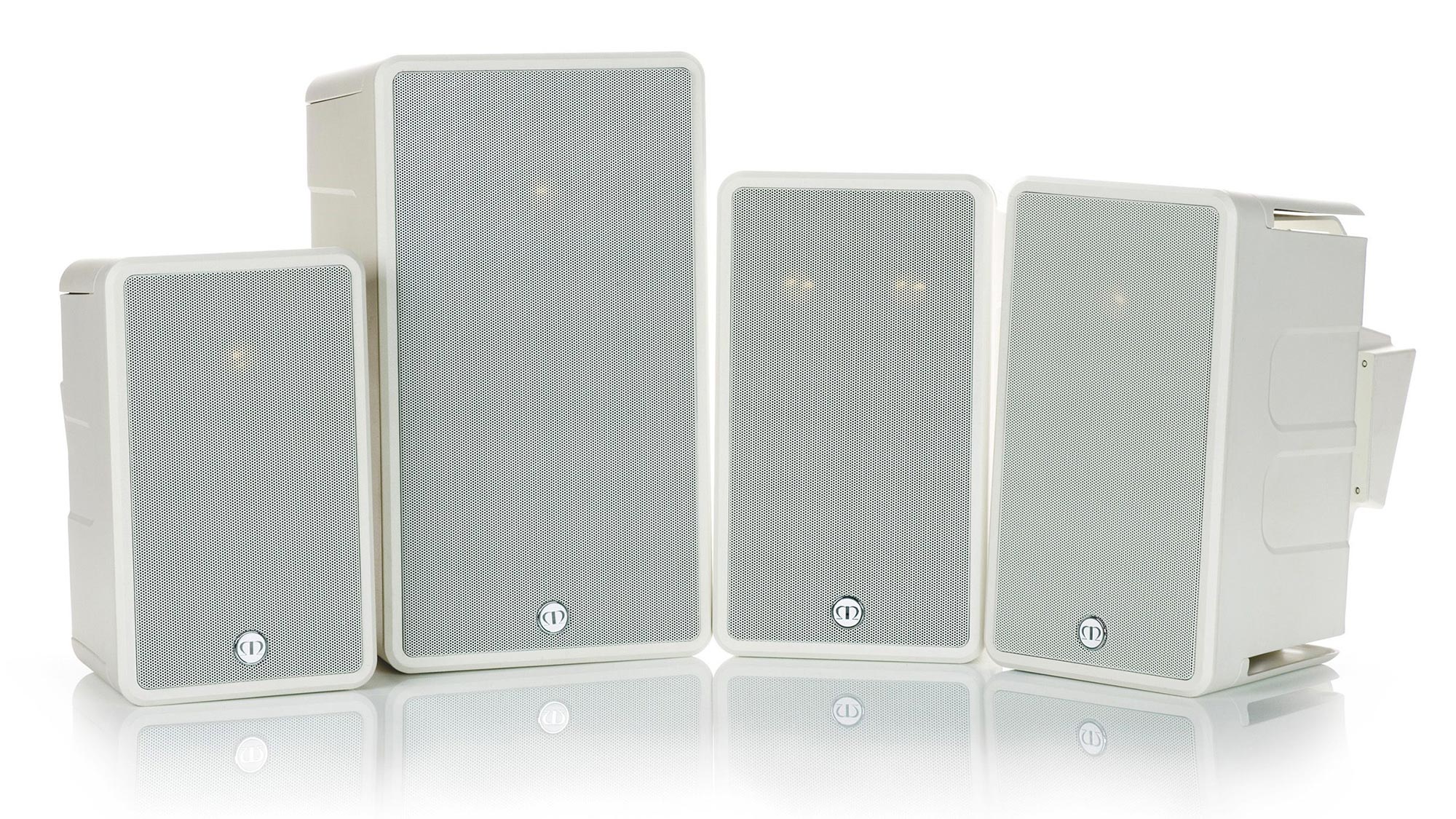

Monitor Audio Climate series

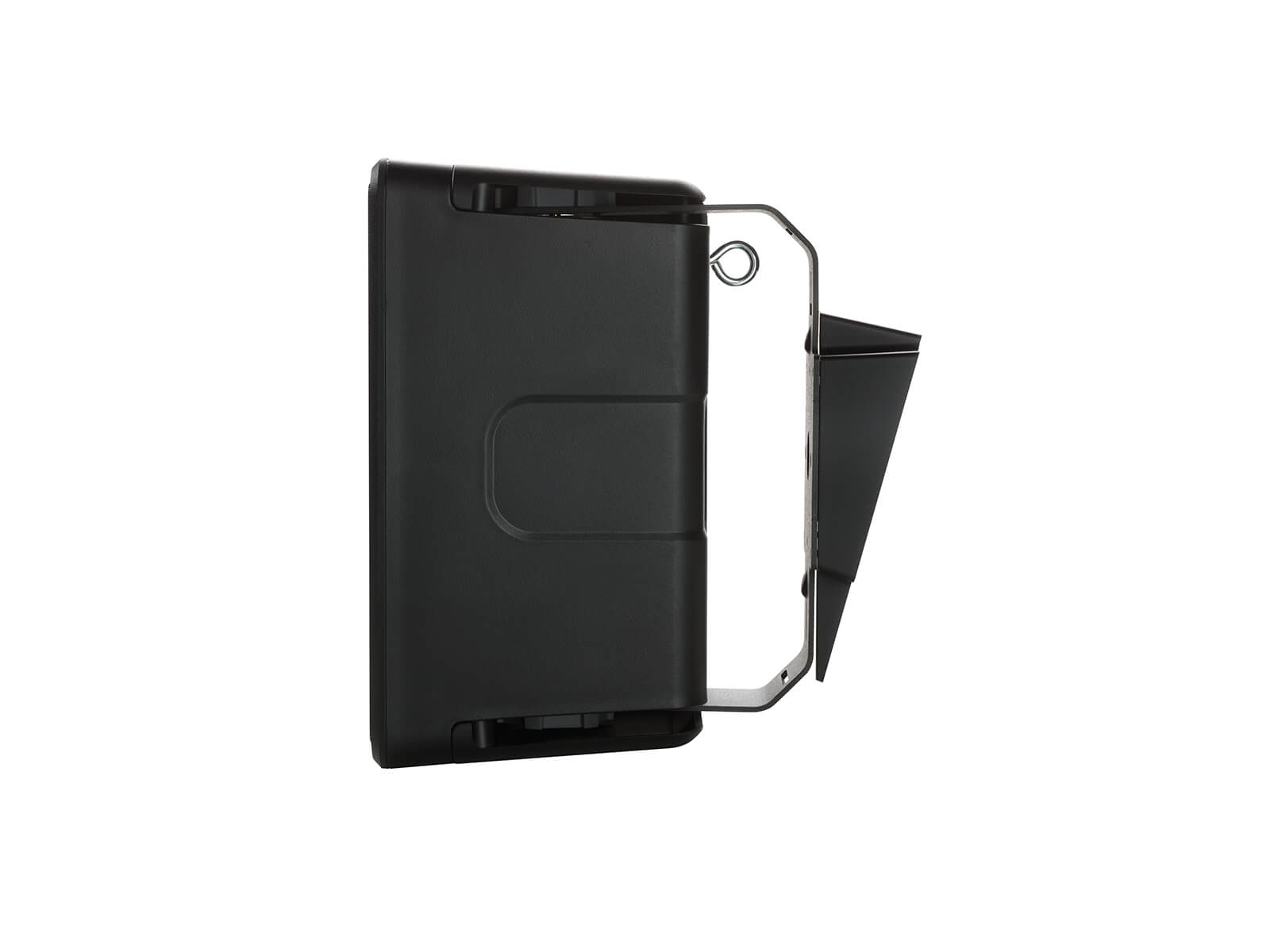

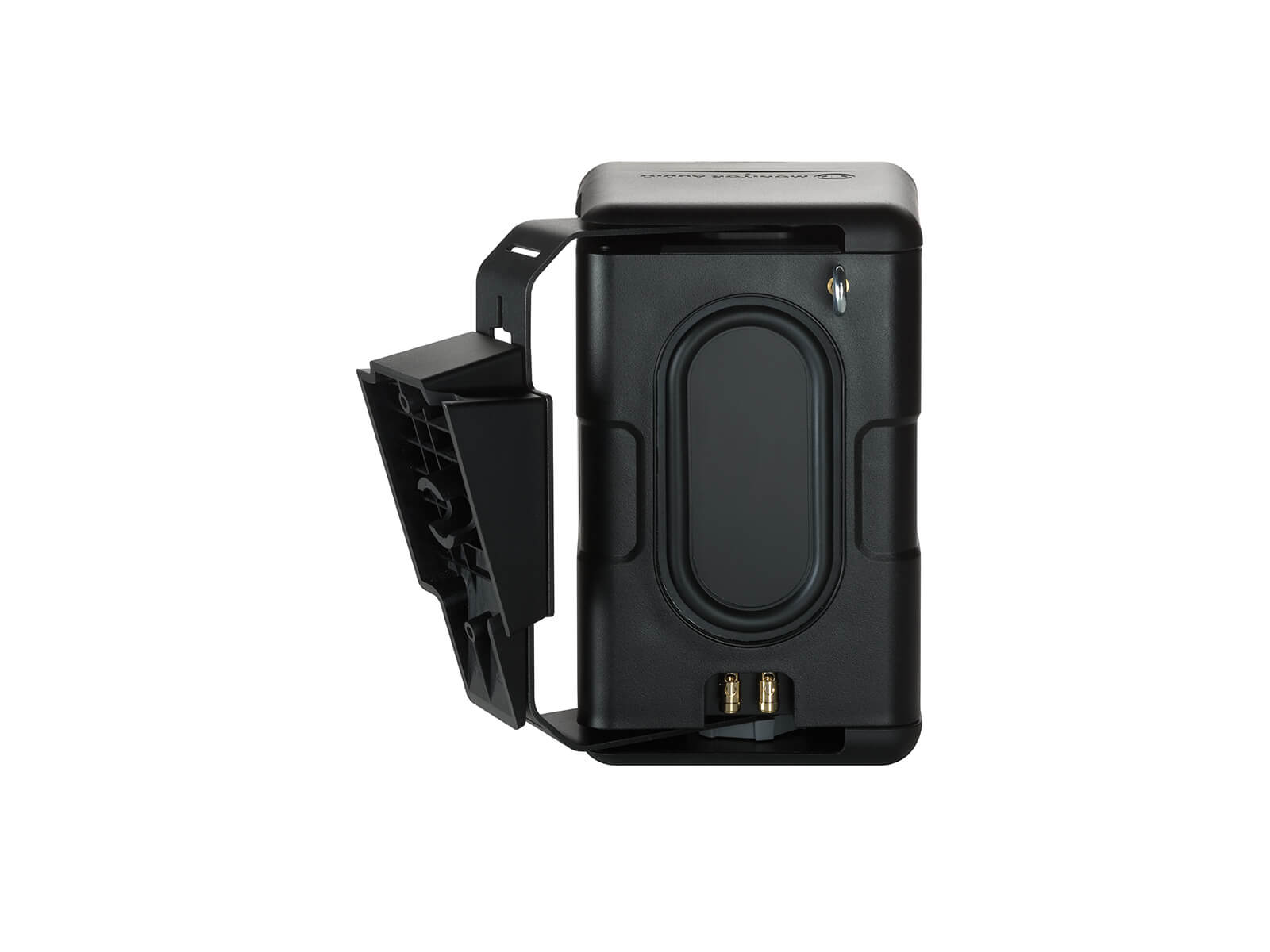

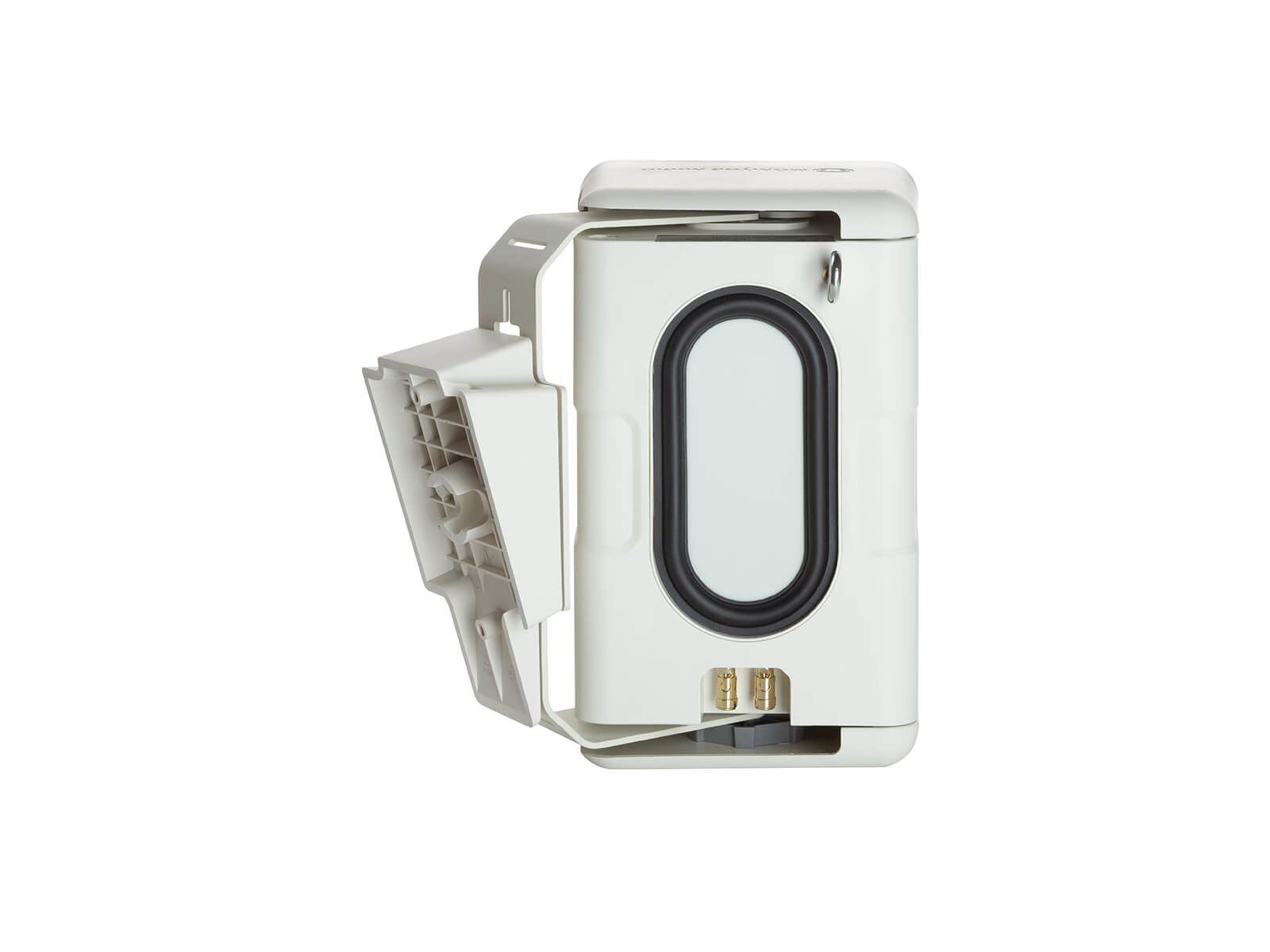

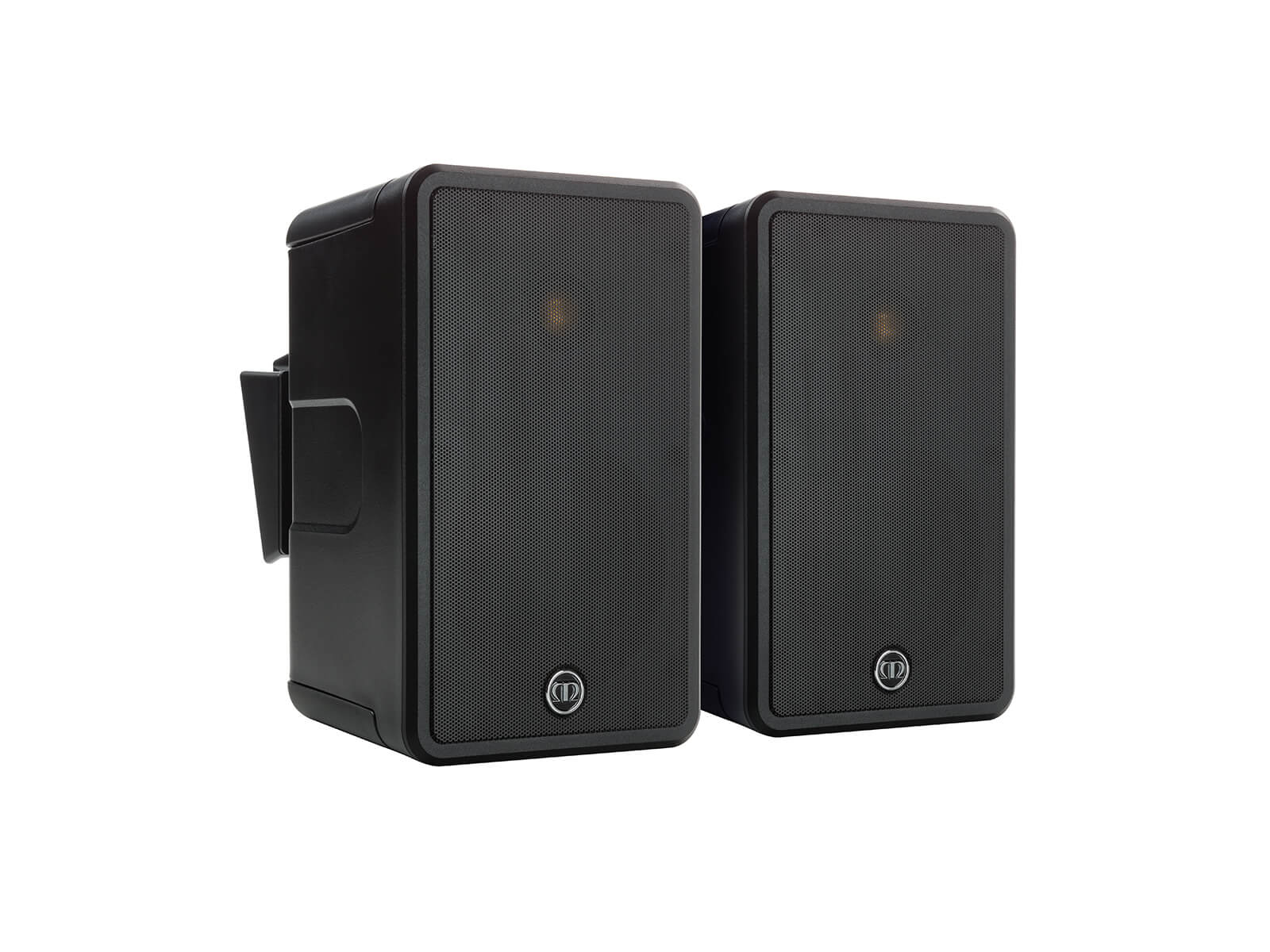

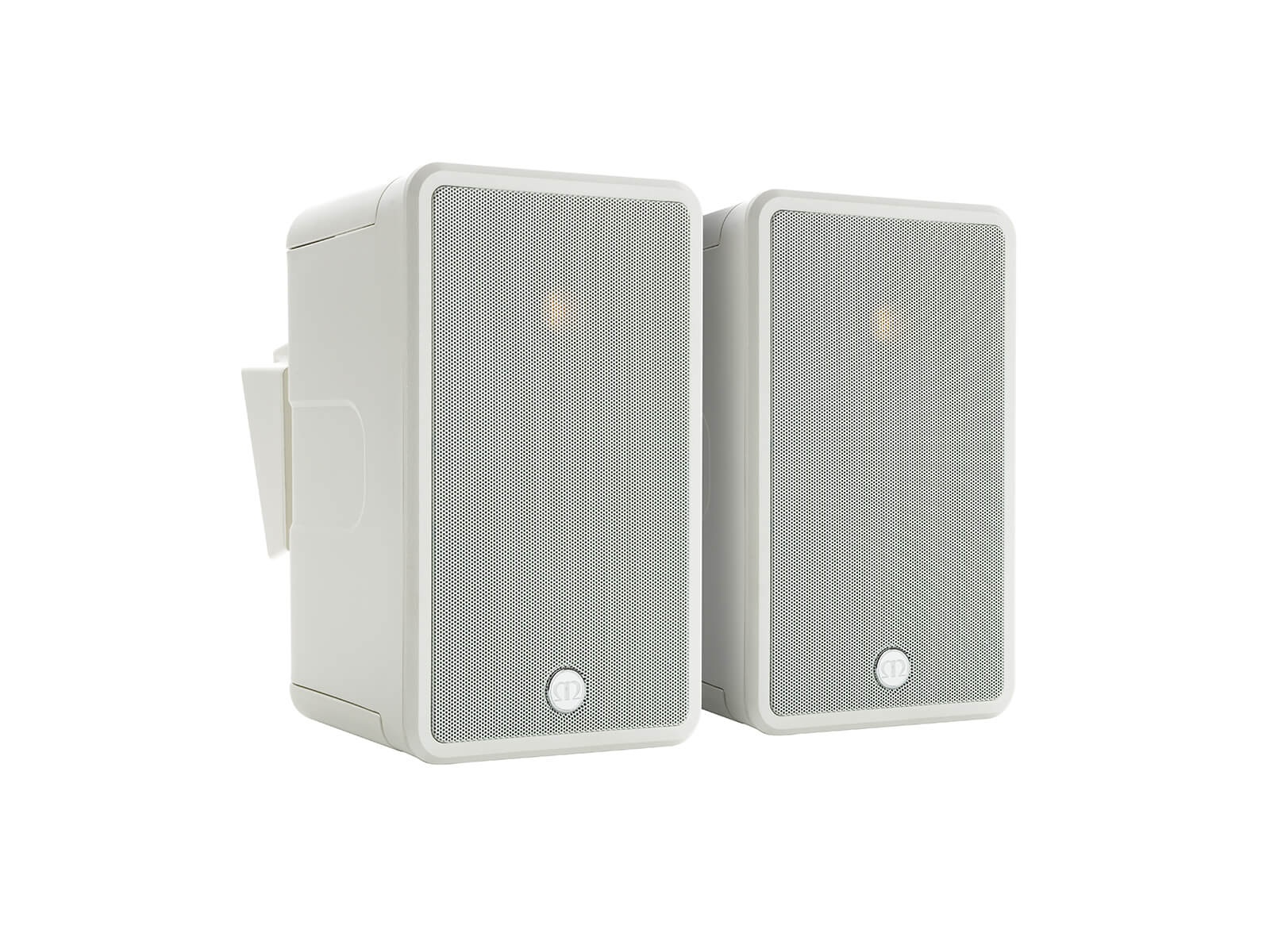

Monitor Audio Climate 50


2-Way outdoor IP55 rated satellite speaker, housing a single 5″ C-CAM bass driver and a 1″ C-CAM Gold Dome tweeter.

Technology

• Quick and easy installation
• High performance C-CAM tweeter and driver technology
• Robust solid sealed, high density polypropylene enclosure – UV rated.

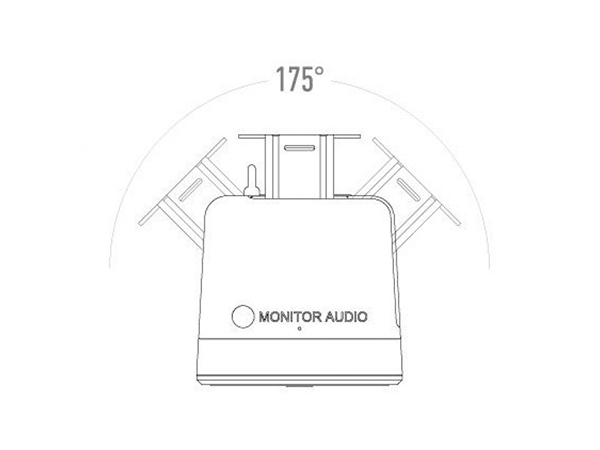

• Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
• 15º angled wedge supplied for additional bracket versatility
• Anchor point for security chain attachment
• ABR (Auxiliary Bass Radiator) for added low frequency punch
• Aluminium grilles prevent rust
• Textured white and black finish, paintable to suit décor (paint mask supplied)
• Rotational ‘M’ logo to align with portrait or landscape positions.
Monitor Audio Climate 80

Frequency Response
75 Hz — 30 kHz

Sensitivity (1W@1M)
87 dB

Nominal Impedance
8 ohms

Maximum SPL
106.8 dBa

Power Handling (RMS)
80 W

Recommended Amplifier Requirements
10 — 80 W

Drivers
1 x 140 mm (5 1/2″) C-CAM bass/ mid-range driver
1 x 25 mm (1″) C-CAM Gold Dome tweeter

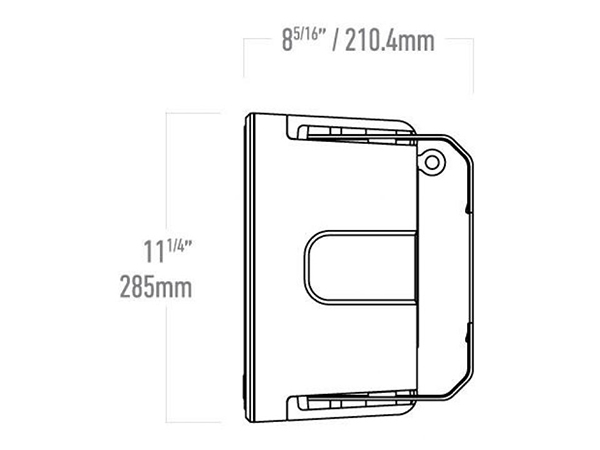

External Dimensions (H x W x D)
285 mm x 172.5 mm x 158.5 mm (111/4″ x 613/16″ x 61/4″)

Overall Depth (Including Bracket)
210 mm (81/4″)

Total Bracket Pivot Angle
87.5 degrees (from central position)

Fixed Angled Block (Portrait)
15 degrees

Connection
Gold plated ‘push’ type terminals

Environmental Protection Rating
IP55

Colour / Finish
White/Black

Weight (packaged)
3.66 kg (8 lb)

Sold As
Pair

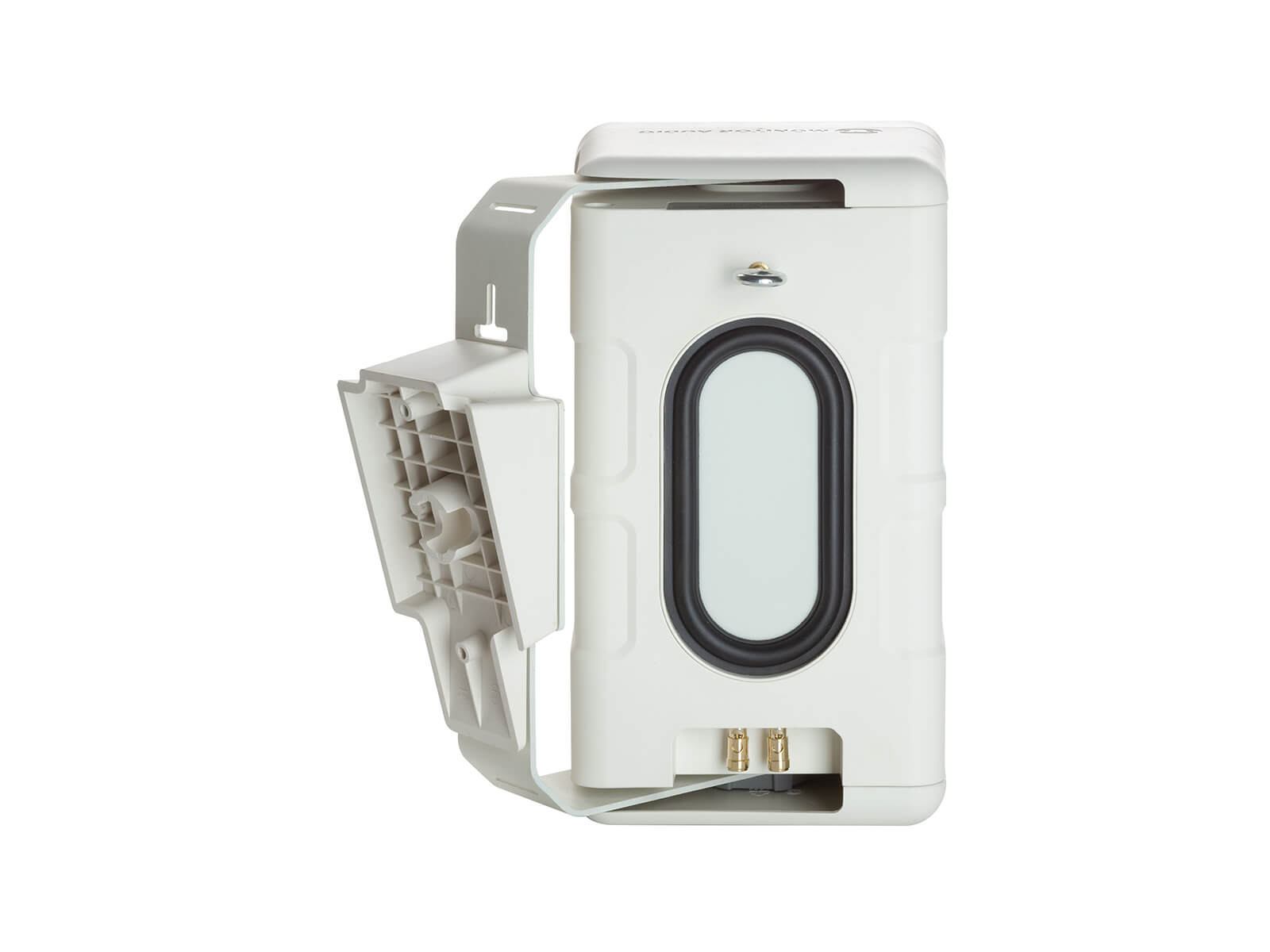

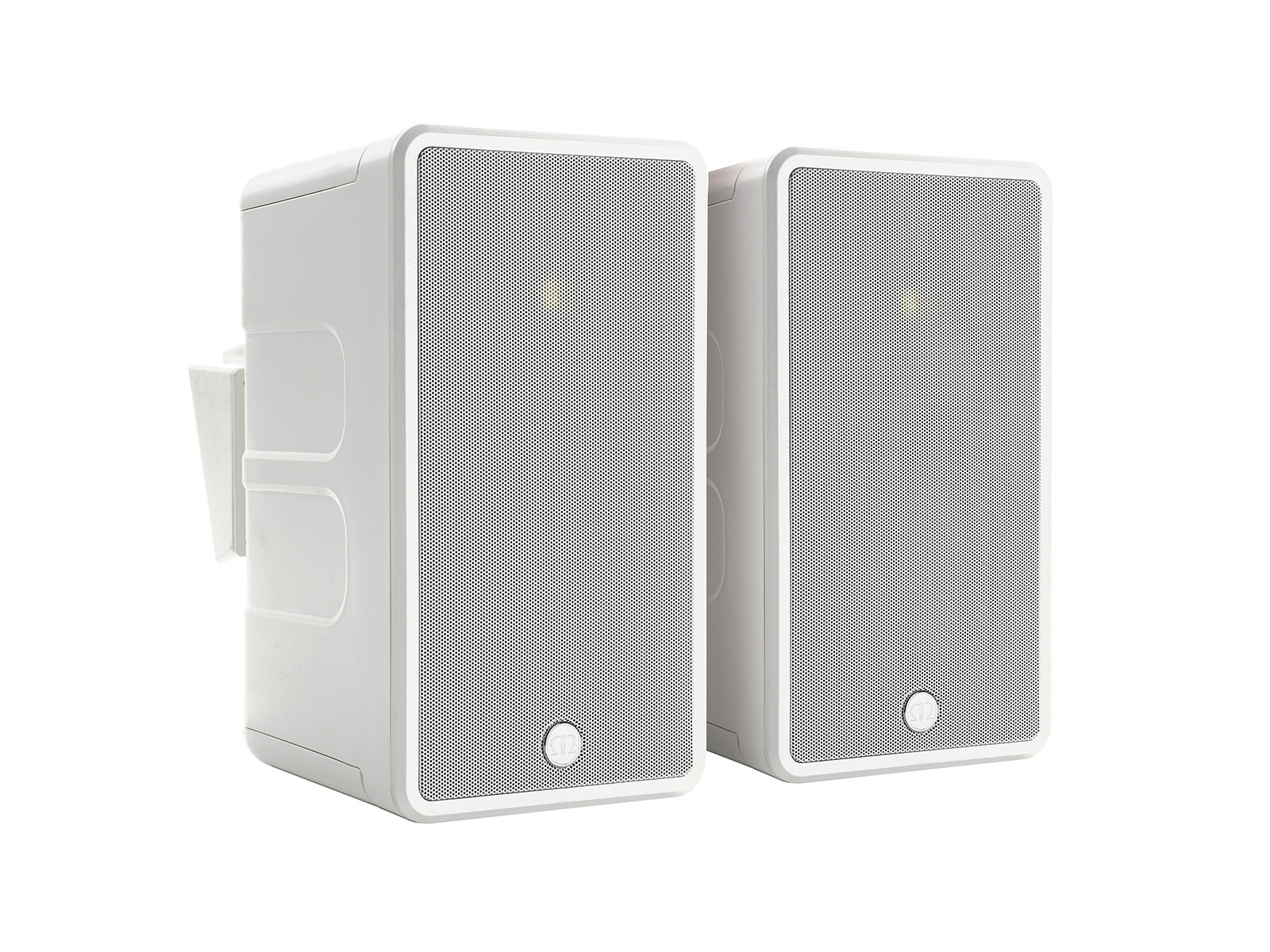

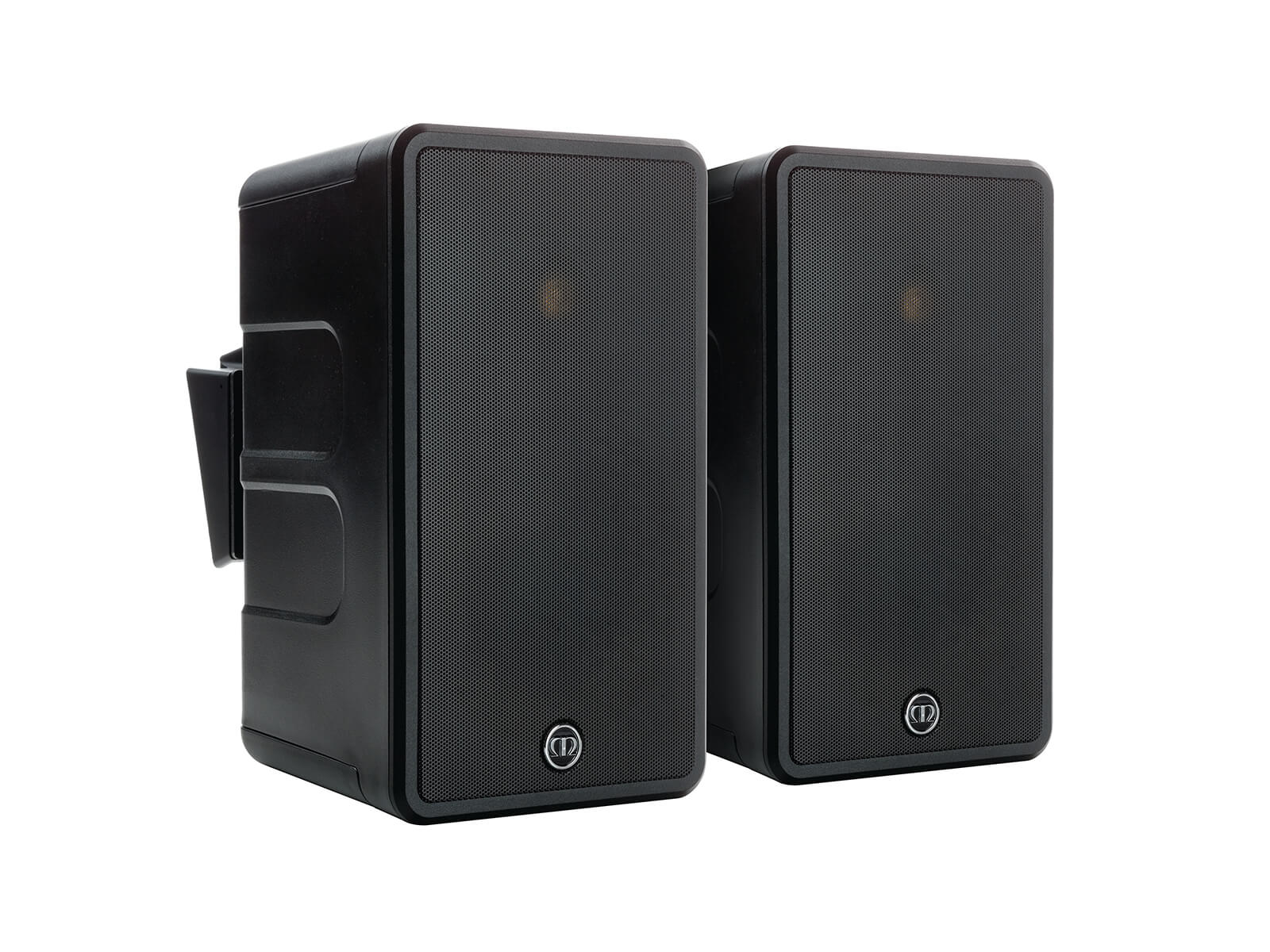

Monitor Audio Climate 60


2-Way outdoor IP55 rated satellite speaker, housing a single 6 1/2″ C-CAM bass driver and a 1″ C-CAM Gold Dome tweeter.

Technology

• Quick and easy installation
• High performance C-CAM tweeter and driver technology
• Robust solid sealed, high density polypropylene enclosure – UV rated.
• Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
• 15º angled wedge supplied for additional bracket versatility
• Anchor point for security chain attachment
• ABR (Auxiliary Bass Radiator) for added low frequency punch
• Aluminium grilles prevent rust
• *Textured white and black finish, paintable to suit décor (paint mask supplied)
• Rotational ‘M’ logo to align with portrait or landscape positions.

Frequency Response
63 Hz — 30 kHz

Sensitivity (1W@1M)
88 dB

Nominal Impedance
8 ohms

Maximum SPL
108.8 dBa

Power Handling (RMS)
100 W

Recommended Amplifier Requirements
15 — 100 W

Drivers
1 x 165 mm (6 1/2″) C-CAM bass/ mid-range driver
1 x 25 mm (1″) C-CAM Gold Dome tweeter

External Dimensions (H x W x D)
325 x 185 x 178.5 mm (1213/16 x 75/16 x 7″)

Overall Depth (Including Bracket)
235 mm (91/4″)

Total Bracket Pivot Angle
87.5 degrees (from central position)

Fixed Angled Block (Portrait)
15 degrees

Connection
Gold plated ‘push’ type terminals

Environmental Protection Rating
IP55

Colour / Finish
White/Black

Weight (packaged)
4.62 kg (10 lb 2 oz)

Sold As
Pair

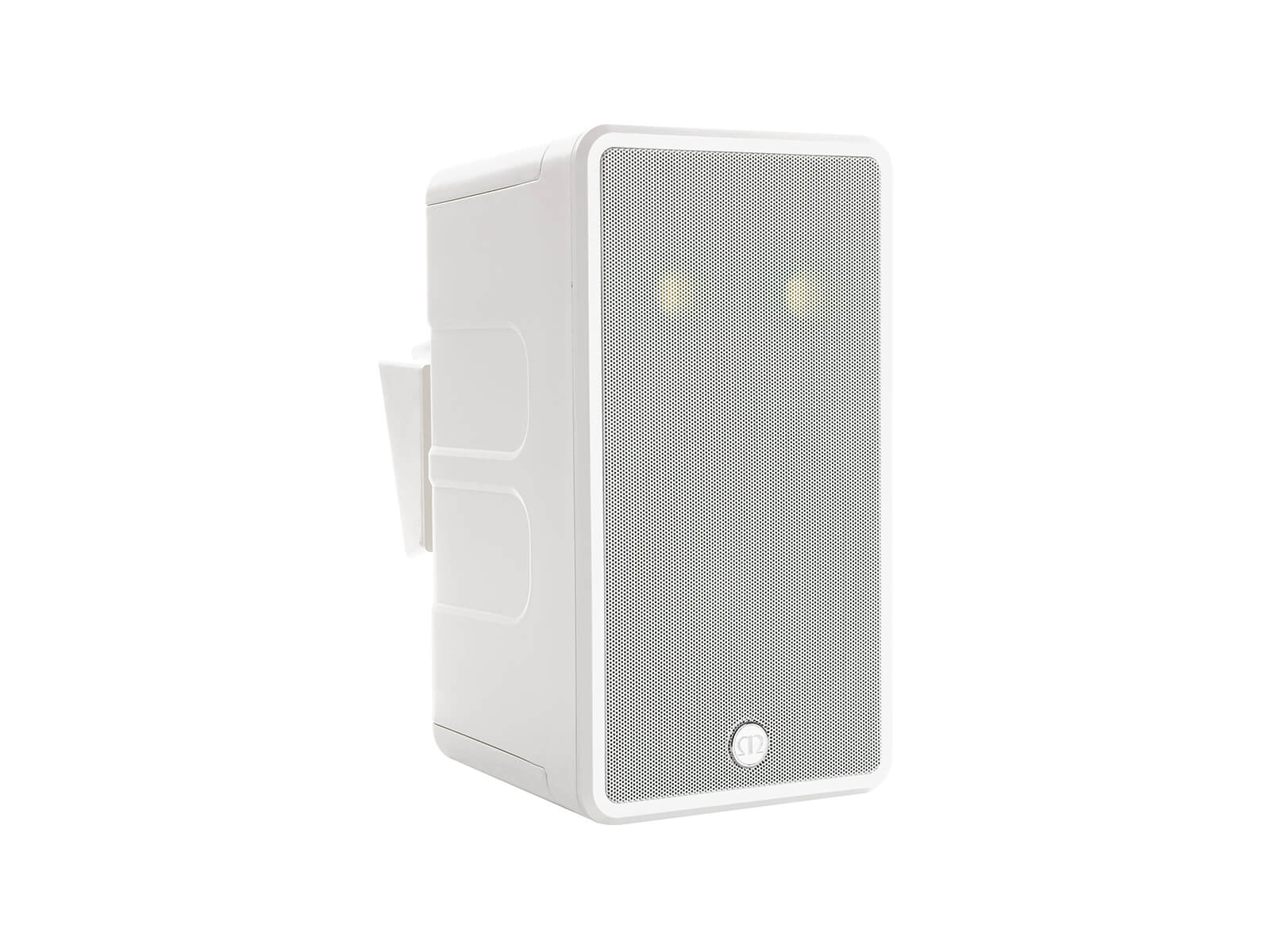

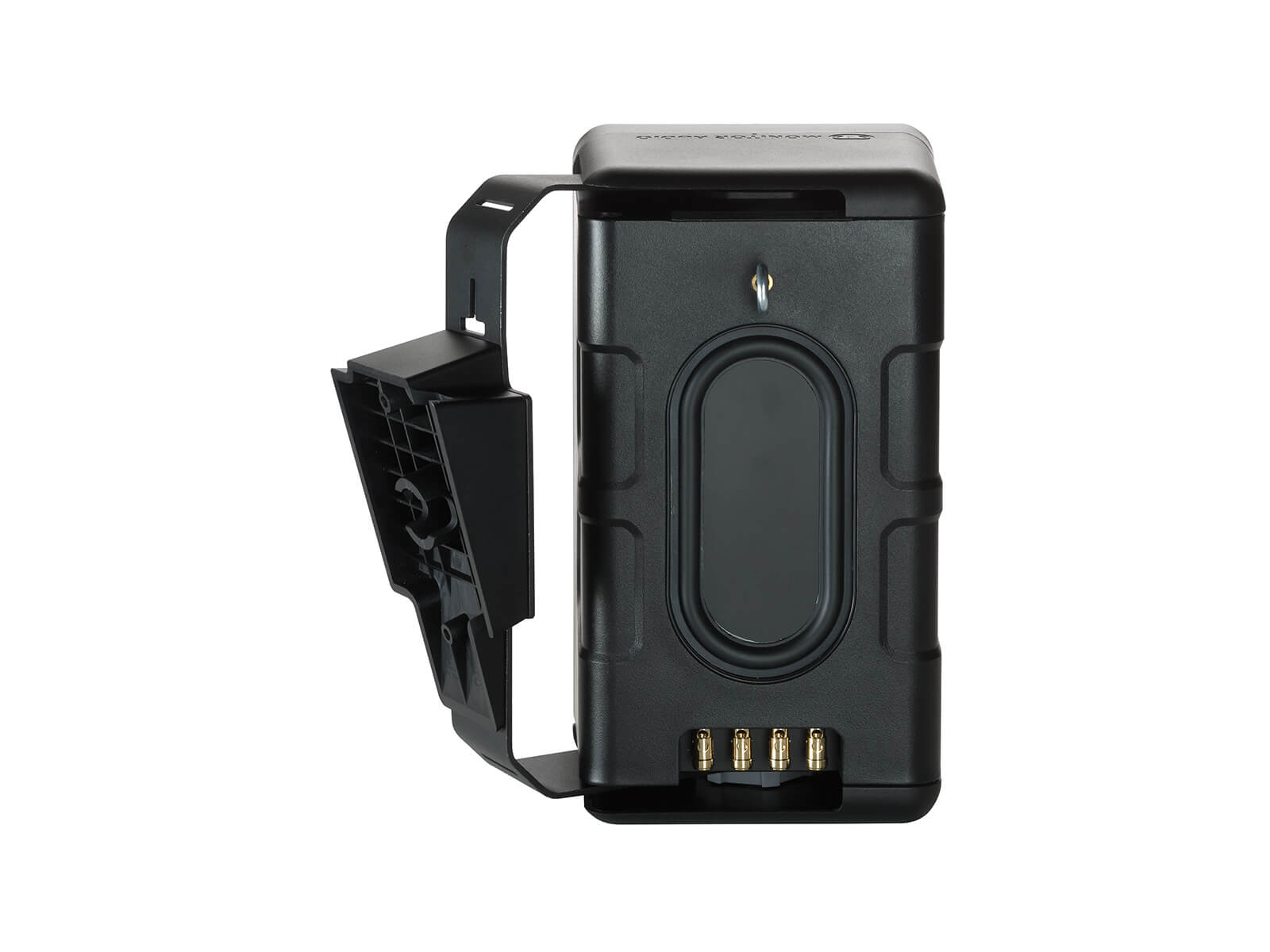

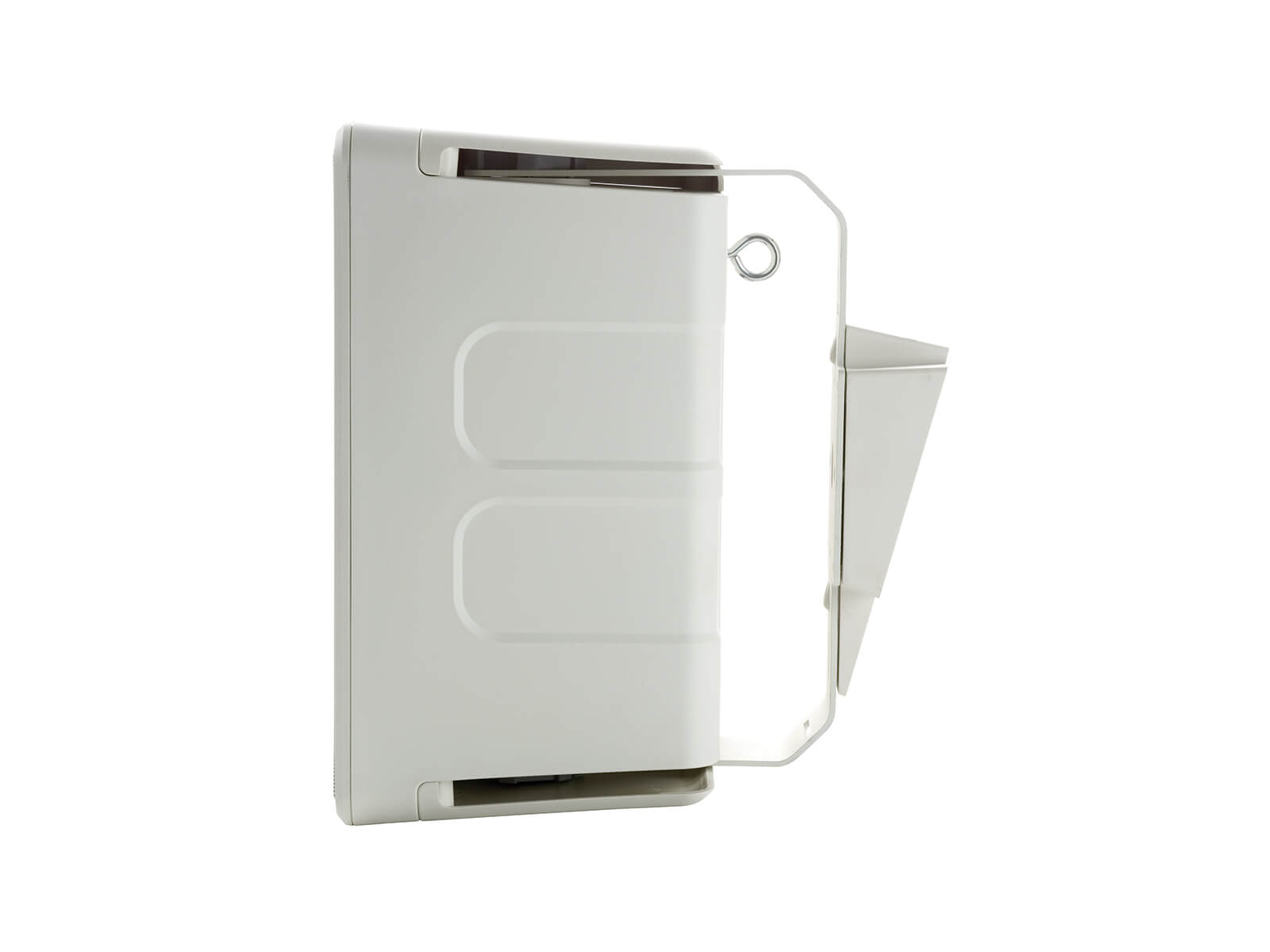

Monitor Audio Climate 60-T2


Single-stereo outdoor IP55 rated satellite speaker, housing a single 6 1/2″ C-CAM bass driver and 2 x 1″ C-CAM Gold Dome tweeters.

Frequency Response
63 Hz — 30 kHz

Sensitivity (1W@1M)
88 dB

Nominal Impedance
2 x 8 ohms

Maximum SPL
108.8 dBa

Power Handling (RMS)
2 x 50 W

Recommended Amplifier Requirements
15 — 100 W

Drivers
1 x 165 mm (6 1/2″) C-CAM bass/ mid-range driver with dual voice coil.
2 x 25 mm (1″) C-CAM Gold Dome tweeter.

External Dimensions (H x W x D)
325 x 185 x 178.5 mm (1213/16 x 75/16 x 7″)

Overall Depth (Including Bracket)
235 mm (91/4″)

Total Bracket Pivot Angle
87.5 degrees (from central position)

Fixed Angled Block (Portrait)
15 degrees

Connection
2 sets – Gold plated ‘push’ type terminals

Environmental Protection Rating
IP55

Colour / Finish
White/Black

Weight (packaged)
5.02 kg (11 lb)

Sold As
Single Unit

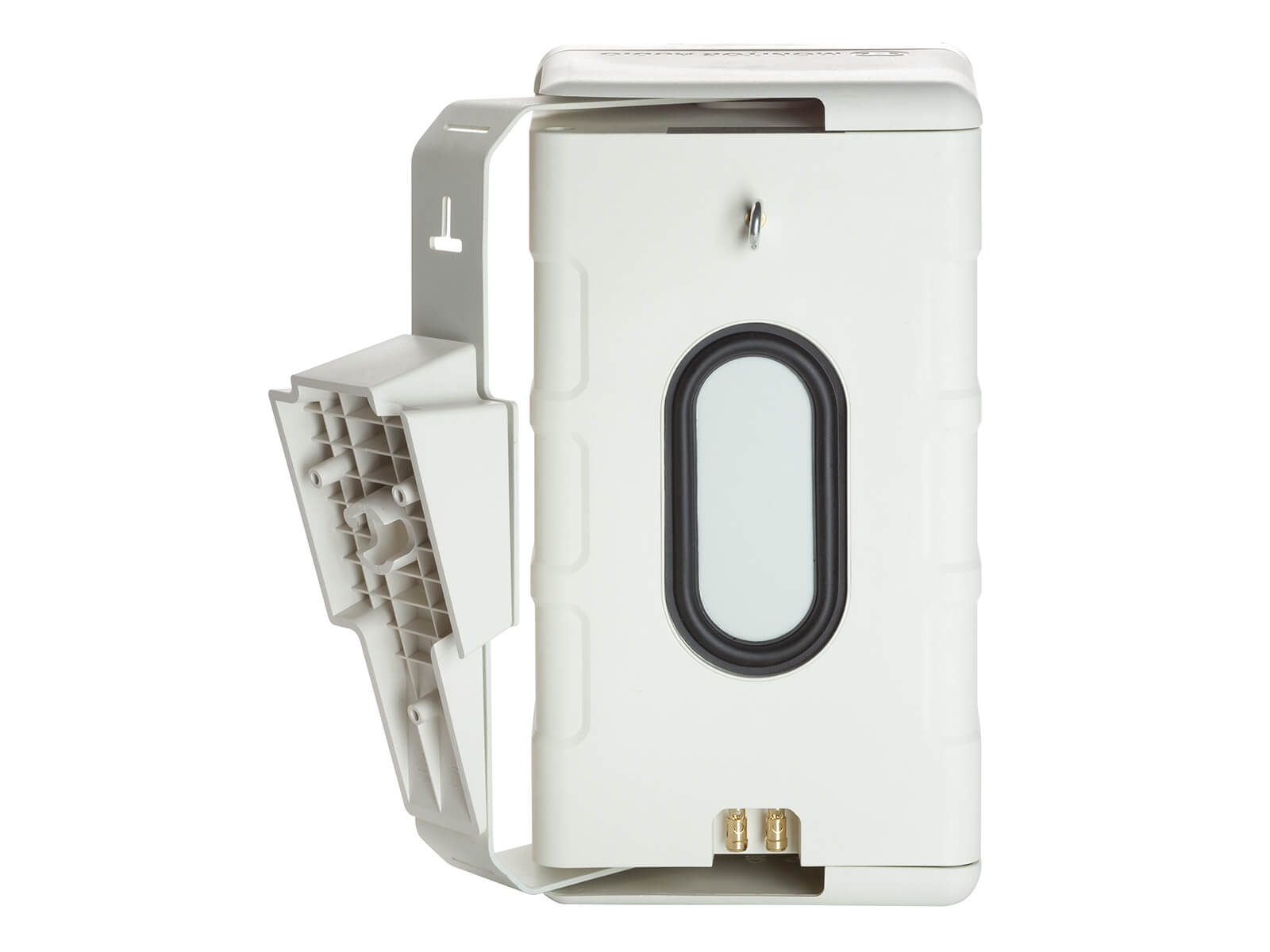

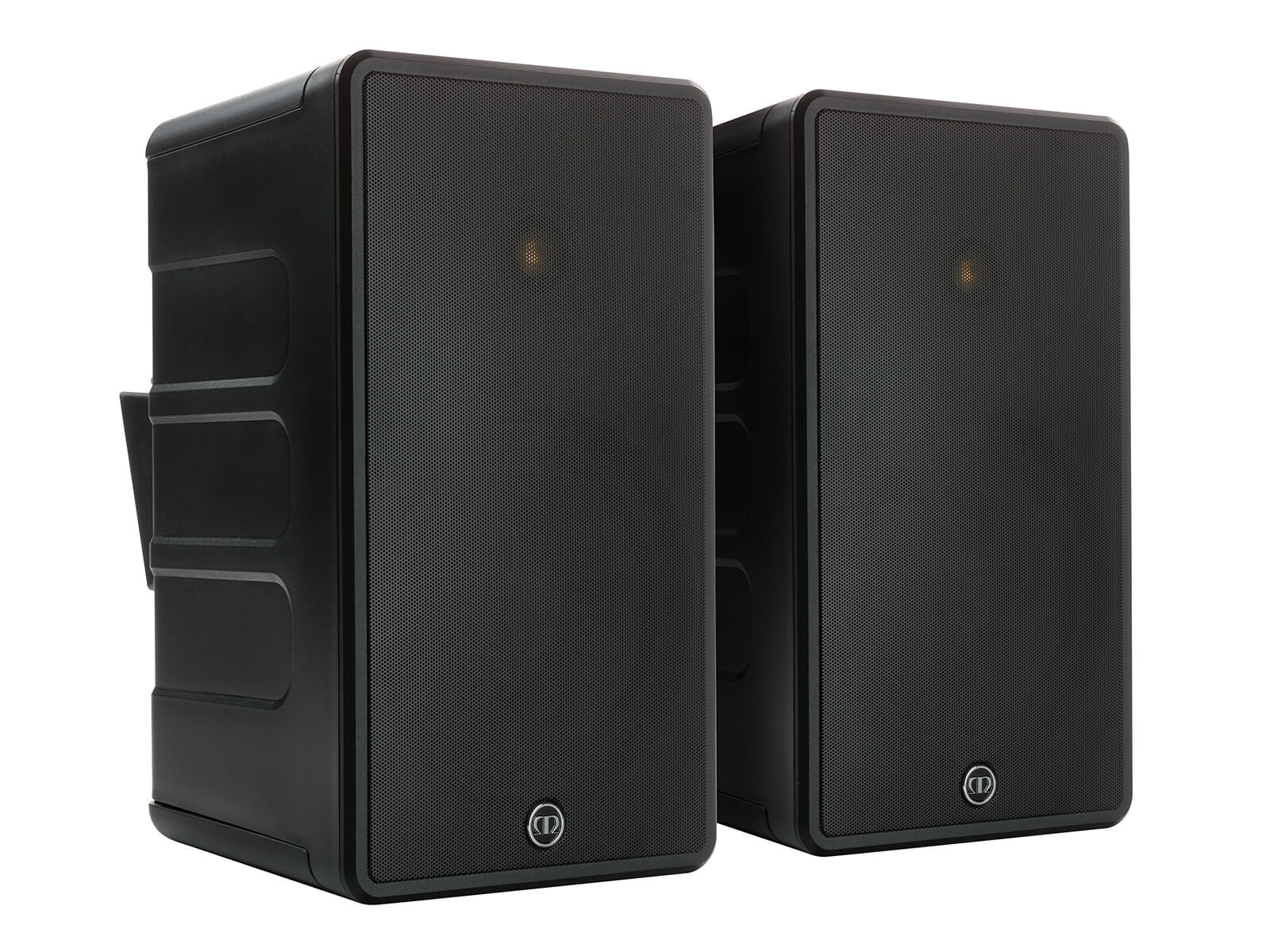

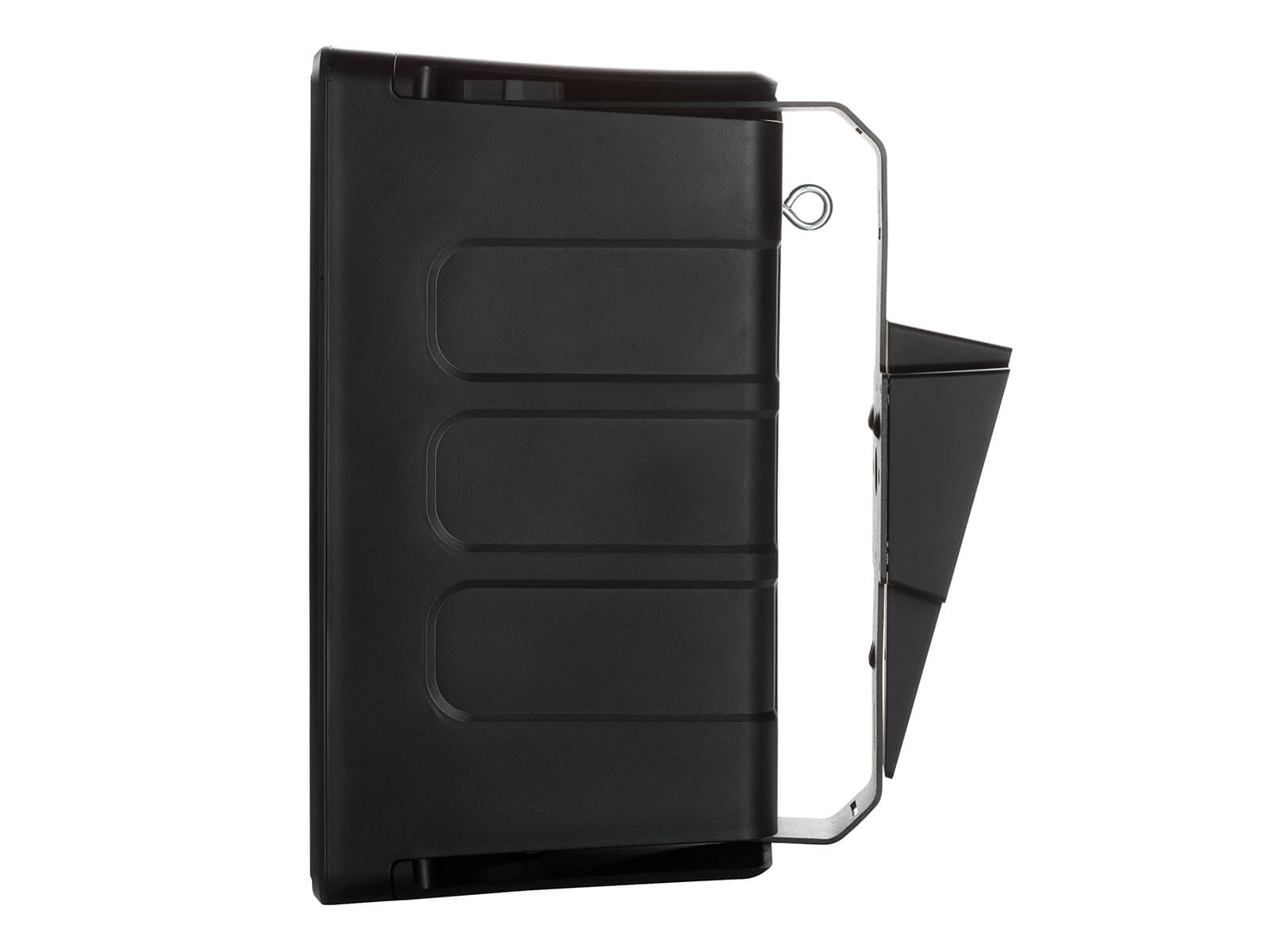

Monitor Audio Climate 80


2-Way outdoor IP55 rated satellite speaker, housing a single 8″ C-CAM bass driver and a 1″ C-CAM Gold Dome tweeter.

Technology

• Quick and easy installation
• High performance C-CAM tweeter and driver technology
• Robust solid sealed, high density polypropylene enclosure – UV rated.
• Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
• 15º angled wedge supplied for additional bracket versatility
• Anchor point for security chain attachment
• ABR (Auxiliary Bass Radiator) for added low frequency punch
• Aluminium grilles prevent rust
• *Textured white and black finish, paintable to suit décor (paint mask supplied)
• Rotational ‘M’ logo to align with portrait or landscape positions.

Frequency Response
50 Hz — 30 kHz

Sensitivity (1W@1M)
89.5 dB

Nominal Impedance
8 ohms

Maximum SPL
111.1 dBa

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
20 — 120 W

Drivers
1 x 203 mm (8″) C-CAM bass/ mid-range driver
1 x 25 mm (1″) C-CAM Gold Dome tweeter

External Dimensions (H x W x D)
405 x 230 x 221 mm (1515/16 x 91/16 x 811/16″)

Overall Depth (Including Bracket)
272.5 mm (103/4″)

Total Bracket Pivot Angle
87.5 degrees (from central position)

Fixed Angled Block (Portrait)
15 degrees

Connection
Gold plated ‘push’ type terminals

Environmental Protection Rating
IP55

Colour / Finish
White/Black

Weight (packaged)
6.53 kg (14 lb 6 oz)

Sold As
Pair
